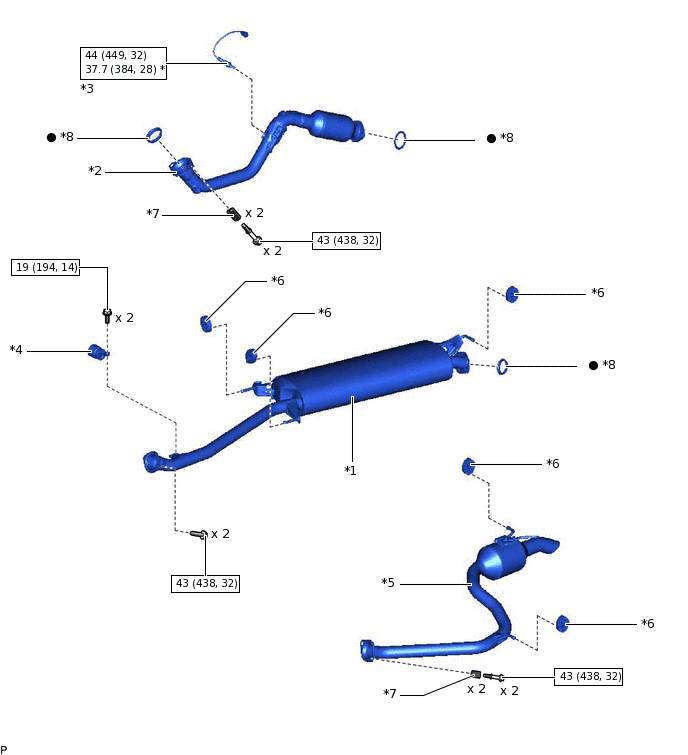

EXHAUST PIPE COMPONENTS
ILLUSTRATION
*1 |
CENTER EXHAUST PIPE ASSEMBLY |
*2 |
FRONT EXHAUST PIPE ASSEMBLY |
*3 |
HEATED OXYGEN SENSOR |
*4 |
NO. 2 EXHAUST PIPE DAMPER |
*5 |
TAIL EXHAUST PIPE ASSEMBLY |
*6 |
EXHAUST PIPE SUPPORT |
*7 |
COMPRESSION SPRING |
*8 |
GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
● |
Non-reusable part |
- |
- |
