FRONT STABILIZER BAR COMPONENTS

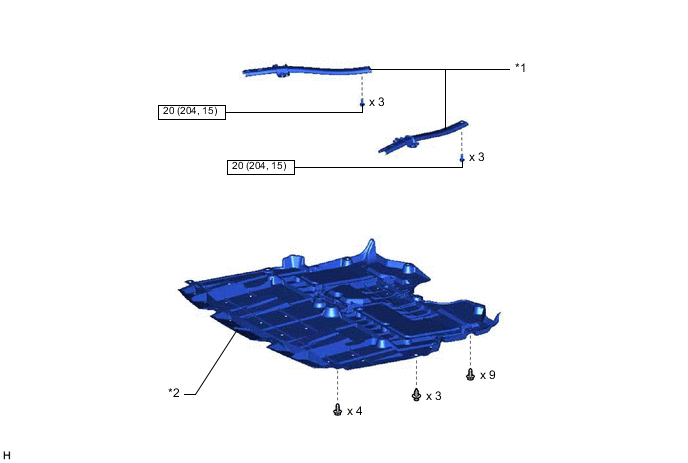

ILLUSTRATION
| *1 | FRONT UPPER NO. 2 SUSPENSION MEMBER | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

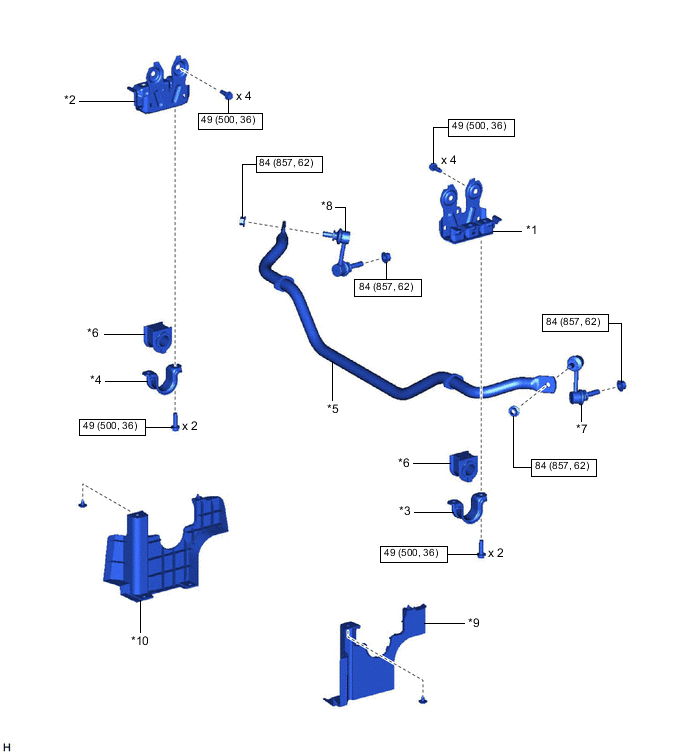

ILLUSTRATION
| *1 | FRONT NO. 1 STABILIZER BRACKET LH | *2 | FRONT NO. 1 STABILIZER BRACKET RH |
| *3 | FRONT NO. 2 STABILIZER BRACKET LH | *4 | FRONT NO. 2 STABILIZER BRACKET RH |
| *5 | FRONT STABILIZER BAR | *6 | FRONT STABILIZER BAR BUSHING |
| *7 | FRONT STABILIZER LINK ASSEMBLY LH | *8 | FRONT STABILIZER LINK ASSEMBLY RH |
| *9 | REAR ENGINE UNDER COVER LH | *10 | REAR ENGINE UNDER COVER RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
