FRONT SEAT ASSEMBLY(for Power Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

   1.

      Remove the screw and detach the claw.

   2.

      Detach the clip, guide and 2 claws in the direction indicated by the arrow shown in the illustration to remove the front inner No. 1 seat cushion shield LH.

2. REMOVE FRONT SEAT CUSHION SHIELD LH

   1.

      	First
      	Second

      Detach the clip.

   2. Detach the claw and 3 guides as indicated by the arrows in the order shown in the illustration.

   3.

      Detach the 3 claws to open the cover.

   4. w/o Memory:

      Disconnect the 2 connectors and detach the 3 clamps to remove the front seat cushion shield LH.

   5.

      w/ Memory:

      Disconnect the 3 connectors and detach the 3 clamps to remove the front seat cushion shield LH.

3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

   1.

      Using a moulding remover A, detach the 2 claws to remove the slide and vertical power seat switch knob.

4. REMOVE RECLINING POWER SEAT SWITCH KNOB

   1.

      Using a moulding remover A, detach the 2 claws to remove the reclining power seat switch knob.

5. REMOVE FRONT POWER SEAT SWITCH (w/o Memory)

   Click here

6. REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Memory)

   Click here

7. REMOVE POWER SEAT SWITCH ASSEMBLY

   Click here

8. REMOVE FRONT INNER SEAT CUSHION SHIELD LH

   1.

      	First
      	Second

      Detach the 2 claws and 3 guides as indicated by the arrows in the order shown in the illustration to remove the front inner seat cushion shield LH.

9. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

   1.

      Disconnect the connector and detach the clamp.

   2.

      Disconnect the rubber band.

   3.

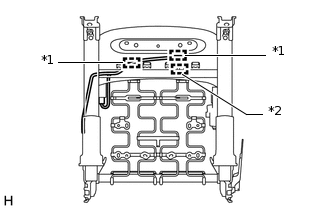

      *1	Wire Harness Clamp
      *2	Connector Clamp

      Detach the 4 wire harness clamps and connector clamp.

   4.

      *1

      Fastener

      Detach the fastener to disconnect the wire harness of the front seat airbag assembly LH.

   5.

      *1	Connector Clamp
      *2	Wire Harness Clamp

      w/ Seat Heater System:

      1. Detach the connector clamp and wire harness clamp.

      2. Disconnect the connector.

   6.

      Detach the 2 hooks.

   7.

      Remove the 4 bolts and separate type front seatback assembly.

10. REMOVE FRONT SEAT HEADREST SUPPORT

    1.

       Remove the 5 hog rings.

    2.

       Remove the 3 hog rings.

    3.

       Open the 2 fasteners.

    4.

       Detach the 4 claws to remove the 2 front seat headrest supports.

11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

    1.

       for Dual Type:

       1. Remove the 2 nuts.

    2.

       for Single Type:

       1. Remove the nut.

    3. Pull the separate type front seatback cover bracket from the separate type front seatback pad.

    4.

       Remove the 8 hog rings and separate type front seatback cover from the separate type front seatback pad.

12. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

13. REMOVE SEPARATE TYPE FRONT SEATBACK PAD

    1. Remove the separate type front seatback pad from the separate type front seatback spring assembly LH.

14. REMOVE SEATBACK FELT

    1. Remove the seatback felt from the separate type front seatback spring assembly LH.

15. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH

    Click here

16. REMOVE FRONT NO. 2 SEAT WIRE LH

    1.

       Disconnect the 2 connectors.

    2. Detach the 2 clamps to remove the front No. 2 seat wire LH.

17. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    1.

       *1	Wire Harness Clamp
       *2	Connector Clamp

       w/ Seat Heater System:

       1. Disconnect the connector.

       2. Detach the 3 wire harness clamps and connector clamp to disconnect the seat cushion heater wire.

    2. Detach the 9 hooks to remove the separate type front seat cushion cover with pad.



18. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

    1. Remove the 21 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.



19. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

20. REMOVE SEAT POSITION AIRBAG SENSOR (w/ Occupant Classification System)

    Click here

21. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH

    1.

       *1	Wire Harness Clamp
       *2	Connector Clamp

       w/o Occupant Classification System:

       Detach the 2 wire harness clamps and connector clamp.

    2.

       *1	Wire Harness Clamp
       *2	Connector Clamp

       w/ Occupant Classification System:

       Detach the 2 wire harness clamps and connector clamp.

    3.

       Detach the 2 clamps.

    4. Remove the nut and front seat inner belt assembly LH.

    5. Remove the seat belt anchor plate.

22. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH

    1.

       Remove the screw.

    2. Detach the hook in the direction indicated by the arrow in the illustration.

    3.

       Detach the clip to remove the front lower seat cushion shield LH.

23. REMOVE FRONT LOWER SEAT CUSHION SHIELD RH

    Tip:

    Use the same procedure described for the front lower seat cushion shield LH.

24. REMOVE FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH

    1.

       Remove the front outer seat cushion edge protector LH in the direction indicated by the arrow in the illustration.

25. REMOVE FRONT INNER SEAT CUSHION EDGE PROTECTOR LH

    Tip:

    Use the same procedure described for the front outer seat cushion edge protector LH.

26. REMOVE SEAT ADJUSTER COVER CAP

    1. Remove the 2 seat adjuster cover caps from the separate type front seat cushion spring assembly LH.

27. REMOVE FRONT SEAT WIRE LH



    1. Disconnect the 3 connectors.

    2. Detach the 6 clamps to remove the front seat wire LH.
