DYNAMIC RADAR CRUISE CONTROL SYSTEM

Cruise Control Switch

1. Cruise Control Main Switch




   • The cruise control main switch consists of the ON-OFF/mode button and the +RES, -SET and CANCEL switches. The +RES, -SET and CANCEL switches are operated by moving the lever in the 3 directions indicated.

   • The switches in the cruise control main switch are of the automatic reset (normally open) type that turn on only when the switch is being operated and turn off as soon as the driver releases the switch. Furthermore, the functions of the switches are active only when the cruise control system has been turned on using the ON-OFF/mode button on the cruise control main switch.

2. Vehicle-to-vehicle Distance Control Switch




   • While the vehicle is being driven in vehicle-to-vehicle distance control mode, the vehicle-to-vehicle distance setting changes as follows each time the vehicle-to-vehicle distance control switch is pressed: long → middle → short.

   • If the engine switch is turned off and back on (IG), the system will default to "long".

   • The vehicle-to-vehicle distance is as follows:

     Mode	Vehicle-to-vehicle Distance*
     Long	Approximately 50 m (160 ft.)
     Middle	Approximately 40 m (131 ft.)
     Short	Approximately 30 m (98 ft.)

     Tech Tips

     *: While driving at a speed of 80 km/h (50 mph).

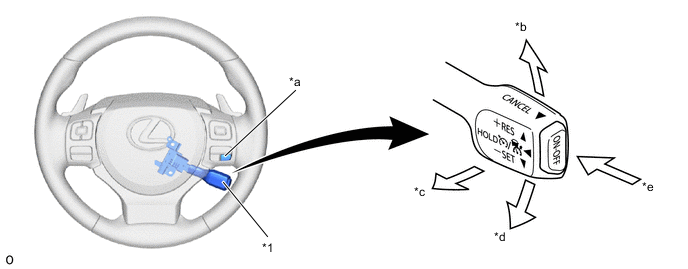

     *1	Cruise Control Main Switch	-	-
     *a	Vehicle-to-vehicle Distance Control Switch	*b	+RES Switch
     *c	CANCEL Switch	*d	-SET Switch
     *e	ON-OFF/Mode button	-	-
