ECD SYSTEM


  1. FUNCTION


    1. The ECM compares the basic and maximum injection volumes, and determines the smaller calculated value to be the final injection volume.

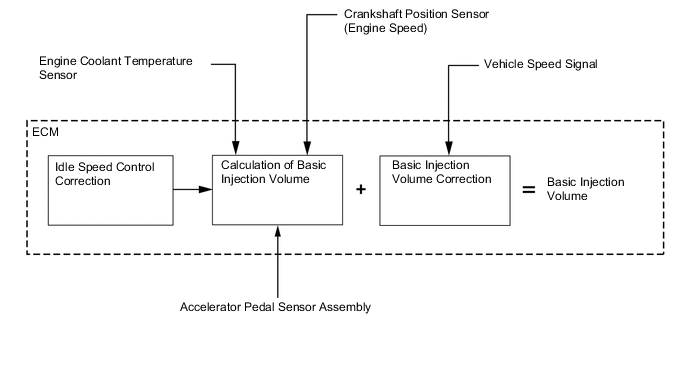

      Figure 1. Basic Injection Volume

      A00YYI4E03

      Figure 2. Maximum Injection Volume

      A00YYRGE03

      Figure 3. Final Injection Volume Decision

      A00YYNZE03
