POWER BACK DOOR TOUCH SENSOR INSTALLATION

CAUTION / NOTICE / HINT

Tip:

A bolt without a torque specification is shown in the standard bolt chart.

Click here

PROCEDURE

  1. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH

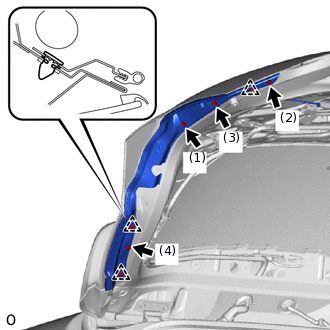

    1. B341618E01

      Attach the 3 clips to the power back door sensor assembly LH.

    2. Install the power back door sensor assembly LH with the 4 screws.

      3.5 N*m

      36 kgf*cm

      31 in.*lbf

      Tip:

      Tighten the screws in the order shown in the illustration.

    3. Connect the connector.

  2. INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH

    Tip:

    Use the same procedure as for the LH side.

  3. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  4. INSTALL BACK DOOR SIDE GARNISH LH

    Click here

  5. INSTALL BACK DOOR SIDE GARNISH RH

    Tip:

    Use the same procedure as for the LH side.

  6. INSTALL BACK DOOR CENTER GARNISH

    Click here
