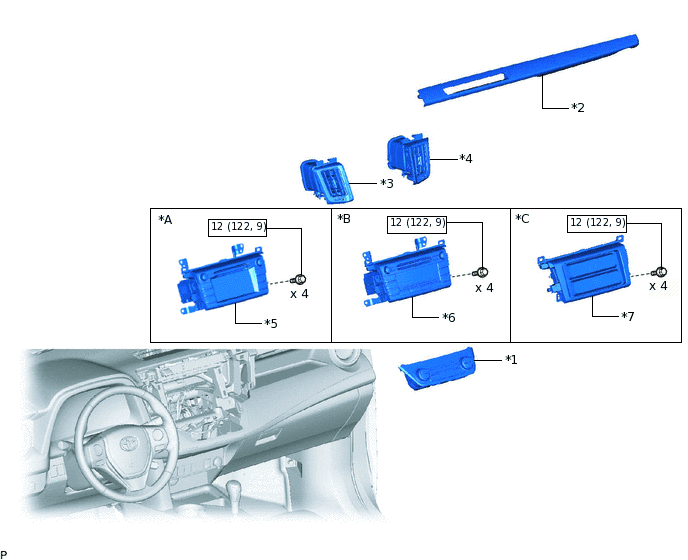

AIR CONDITIONING PANEL COMPONENTS
ILLUSTRATION
*A |
w/ Audio, for Radio and Display Type |
*B |
w/ Audio, for Radio Receiver Type |
*C |
w/o Audio |
- |
- |
*1 |
AIR CONDITIONING CONTROL ASSEMBLY |
*2 |
CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
*3 |
NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
*4 |
NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY |
*5 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*6 |
RADIO RECEIVER ASSEMBLY |
*7 |
STEREO OPENING COVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf) : Specified torque |
- |
- |
