EXHAUST SYSTEM


  1. CONSTRUCTION


    1. The exhaust pipes are made of stainless steel for increased rust resistance.

    2. A three-way catalyst is used for the center exhaust pipe assembly, helping to reduce emissions.

    3. A ball joint is used to join the exhaust manifold sub-assembly to the front exhaust pipe assembly, and center exhaust pipe assembly to the tail exhaust pipe assembly. As a result, in-vehicle sound has been muffled, vibration has been minimized, and weight reduction has been achieved.

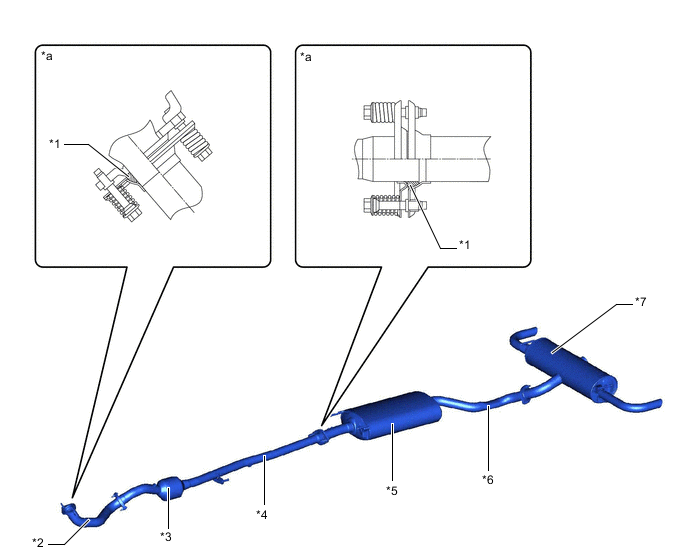

      B007WGRC01
      *1 Gasket *2 Front Exhaust Pipe Assembly
      *3 TWC *4 Center Exhaust Pipe Assembly
      *5 Main Muffler *6 Tail Exhaust Pipe Assembly
      *7 Sub Muffler - -
      *a Ball Joint Portion - -
