EXHAUST PIPE REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

  • Wear protective gloves when removing the exhaust pipe assembly.

  • The exhaust pipe assembly is extremely hot immediately after the engine has stopped.

  • Confirm that the exhaust pipe assembly has cooled down before removing it.

PROCEDURE

  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY

    1. Remove the 2 bolts and 2 compression springs.

    2. Disconnect the 2 exhaust pipe supports and remove the tail exhaust pipe assembly.

    3. Remove the gasket from the center exhaust pipe assembly.

  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    1. Remove the 2 bolts.

    2. Disconnect the 3 exhaust pipe supports and remove the center exhaust pipe assembly.

    3. Remove the gasket from the front exhaust pipe assembly.

  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    1. Remove the 2 bolts, 2 compression springs and front exhaust pipe assembly.

    2. Remove the gasket from the exhaust manifold converter sub-assembly.

  4. REMOVE HEATED OXYGEN SENSOR

    Click here

  5. REMOVE NO. 2 EXHAUST PIPE DAMPER

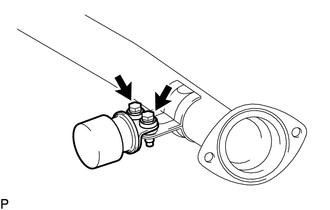

    1. A316726

      Remove the 2 bolts and No. 2 exhaust pipe damper.
