FRONT FENDER APRON ASSEMBLY REPLACEMENT

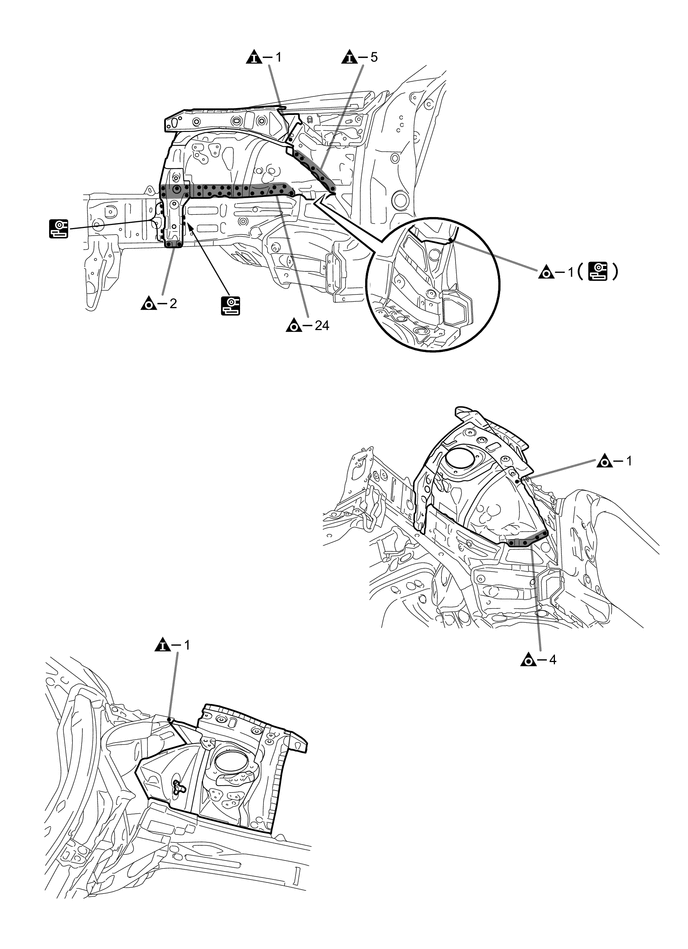

  1. REMOVAL

    Symbol meaning
    A004L9C Remove Weld Points
    A004L2L Remove Weld Points
    A004L0A Cut with Disk Sander etc.
    A004L4O

  2. INSTALLATION

    Symbol meaning
    A004L4Z Plug Weld
    A004L6I Plug Weld
    A004L1P Fillet Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. Make sure to attach correctly in accordance with the body dimension diagram as this part affects the front wheel alignment.

    4. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
