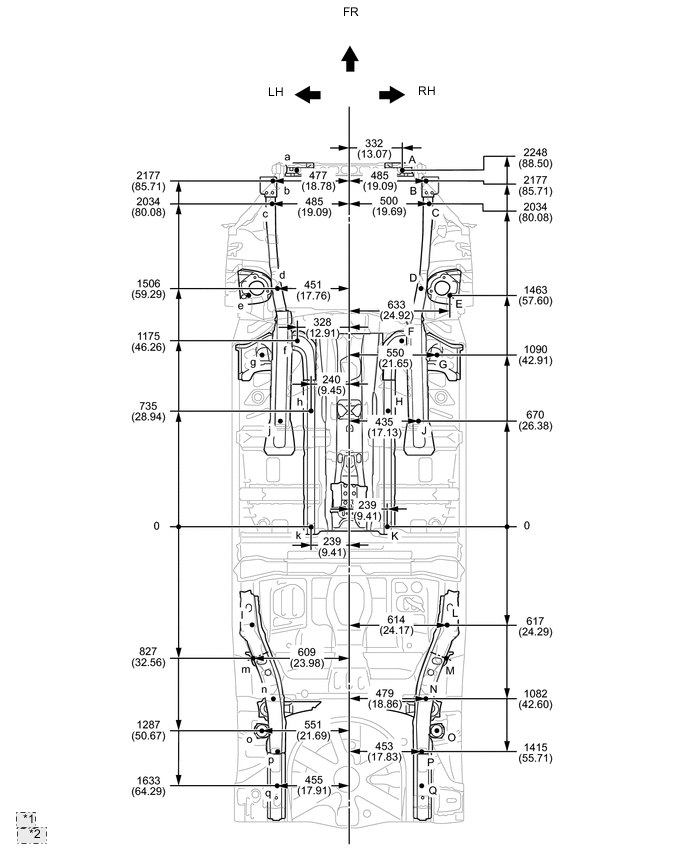

UNDER BODY TWO-DIMENSIONAL DISTANCE
Tech Tips
-
Length measurements are indicated at the points where the arrows extending from the zero point intersect the lines that extend towards the outside of the illustration from each point.
-
Point B, b and C, c on the vehicle are asymmetrical.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Radiator Lower Support Standard Hole | φ10 (0.39) |
| B, b | Front Crossmember Installation Nut | M12 (0.47) |
| C, c | Front Side Inner Member Standard Hole | φ18 (0.71) |
| D, d | Front Suspension Member Installation Nut | M14 (0.55) |
| E, e | Front Spring Support Installation Hole | φ12.5 (0.49) |
| F, f | Front Suspension Member Installation Nut | M14 (0.55) |
| G, g | Torque Box Front Standard Hole | φ25 (0.98) |
| H, h | Front Side Member Reinforcement Standard Hole | φ22 (0.87) |
| J, j | Front Side Member Standard Hole | φ18 (0.71) |
| K, k | Front Floor Center Panel Standard Hole | φ18 (0.71) |
| L, l | Rear Floor Side Front Member Standard Hole | φ25 (0.98) |
| M, m | Trailing Arm Installation Hole | φ16 (0.63) |
| N, n | Rear Spring Plate Standard Hole | φ10 (0.39) |
| O, o | Rear Shock Absorber Installation Hole | φ26 (1.02) |
| P, p | Rear Floor Side Rear Member Standard Hole | φ16 (0.63) |
| Q, q | Rear Floor Side Rear Member Standard Hole | φ18 (0.71) |
| Wheel Base | 2780 mm (109.45 in.) |
| *1 | mm |
| *2 | (in.) |
| *1 | Imaginary Datum Line |
| *2 | Height from Imaginary Datum Line |
| *3 | mm |
| *4 | (in.) |
