INTELLIGENT PARKING ASSIST SYSTEM SYSTEM DIAGRAM

A005E2IE02
A0059XBE02
A0059WYE04

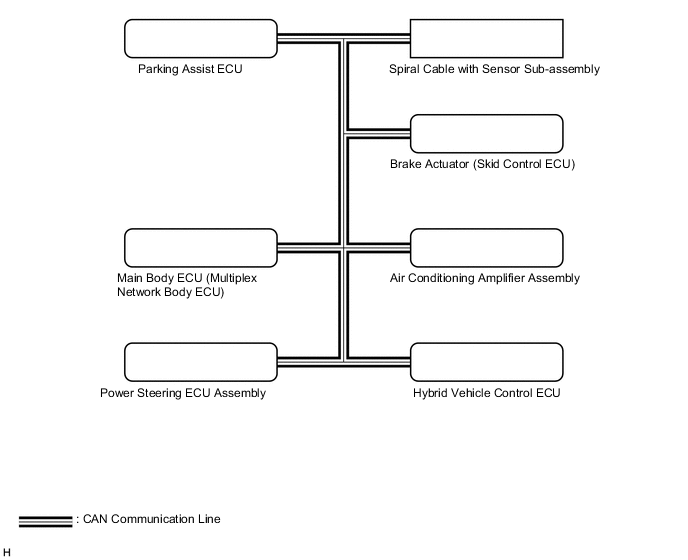

Communication Table
Sender Receiver Signal Line

  • Radio and Display Receiver Assembly*1

  • Navigation Receiver Assembly*2

 Parking Assist ECU Vehicle angle data signal AVC-LAN
Spiral Cable with Sensor Sub-assembly Steering angle signal CAN
Power Steering ECU Assembly Current status signal CAN
Brake Actuator (Skid Control ECU)

  • Current status signal

  • Vehicle speed signal

 CAN
Hybrid Vehicle Control ECU

  • Current status signal

  • Shift state information signal

  • Accelerator opening angle signal

  • Front HV motor revolution angle signal

  • Vehicle information signal

 CAN
Air Conditioning Amplifier Assembly Outside temperature signal CAN
Main Body ECU (Multiplex Network Body ECU)

  • Parking brake information signal

  • Back door courtesy light switch signal

  • Time count information signal

 CAN
Parking Assist ECU Power Steering ECU Assembly

  • Target steering angle signal

  • Current status signal

 CAN
Hybrid Vehicle Control ECU Creep rate increase request signal CAN
