HEADLIGHT DIMMER SWITCH INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

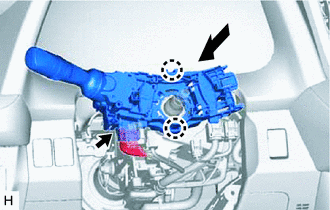

    E269069

    1. Attach the 2 claws to install the headlight dimmer switch assembly.

    2. Connect the connectors.

  2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

    Click here

  3. INSTALL SPIRAL CABLE SUB-ASSEMBLY

    for Single Type:

    Click here

    for Dual Type:

    Click hereClick here

  4. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. INSTALL BATTERY SERVICE COVER

    Click here

  6. INSTALL DECK BOARD ASSEMBLY

    Click here

  7. CHECK SRS WARNING LIGHT

    Click here
