FRONT DOOR COURTESY SWITCH INSPECTION

PROCEDURE

  1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

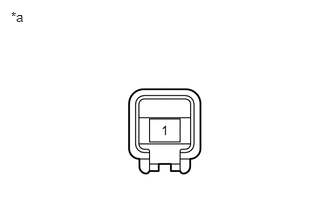

    1. E139234E36

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      1 - Switch body

      Pin not pushed

      Below 1 Ω

      Pin pushed

      10 kΩ or higher
      Table 1. Text in Illustration

      *1

      Component without harness connected

      (Front Door Courtesy Light Switch Assembly)

      If the result is not as specified, replace the front door courtesy light switch assembly.
