FRONT SEAT CUSHION HEATER(for Manual Seat) COMPONENTS

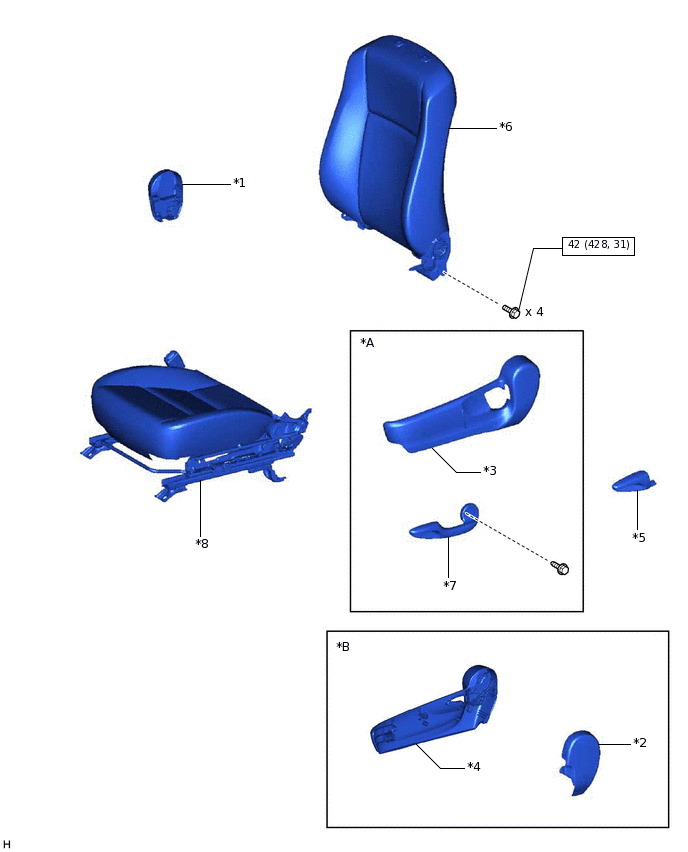

ILLUSTRATION

B433031C03

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT INNER SEAT CUSHION SHIELD LH

*2

FRONT INNER SEAT CUSHION SHIELD RH

*3

FRONT SEAT CUSHION SHIELD LH

*4

FRONT SEAT CUSHION SHIELD RH

*5

RECLINING ADJUSTER RELEASE HANDLE LH

*6

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*7

VERTICAL ADJUSTING HANDLE LH

*8

SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

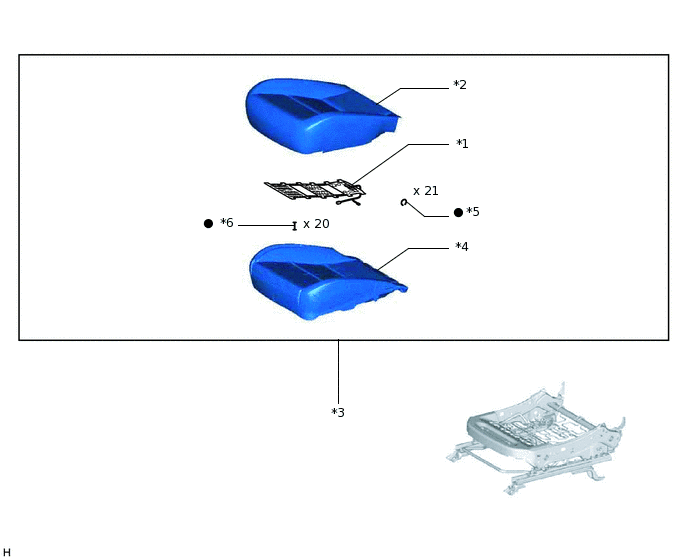

ILLUSTRATION

B342807C03

*1

FRONT SEAT CUSHION HEATER ASSEMBLY LH

*2

SEPARATE TYPE FRONT SEAT CUSHION COVER

*3

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

*4

SEPARATE TYPE FRONT SEAT CUSHION PAD

*5

HOG RING

*6

TACK PIN

●

Non-reusable part

-

-
