DRIVING SUPPORT ECU(for LHD) REMOVAL

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

   Click hereClick here

2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

   Click here

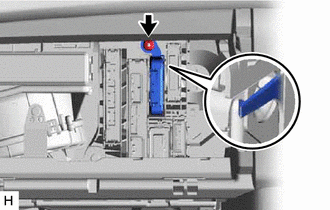

3. REMOVE DRIVING SUPPORT ECU ASSEMBLY

   1. Disconnect the connector.

   2.

      Remove the nut.

   3. Detach the claw and remove the driving support ECU assembly.
