AIRBAG SYSTEM
| *1 | Front Airbag Sensor RH | *2 | Front Airbag Sensor LH |
| *3 | ECM | *4 | Side Airbag Sensor Assembly RH |
| *5 | Side Airbag Sensor Assembly LH | *6 | Front Seat Outer Belt Assembly RH - Front Pretensioner Squib RH |
| *7 | Front Seat Outer Belt Assembly LH - Front Pretensioner Squib LH |
*8 | No. 2 Side Airbag Sensor Assembly RH |
| *9 | No. 2 Side Airbag Sensor Assembly LH | *10 | Curtain Shield Airbag Assembly RH - Curtain Shield Squib RH |
| *11 | Curtain Shield Airbag Assembly LH - Curtain Shield Squib LH |
- | - |
| *A | Models without Multi-information Display | *B | Models with Multi-information Display |
| *C | Models with Airbag Cut Off Switch | *D | Models with Network Gateway ECU |

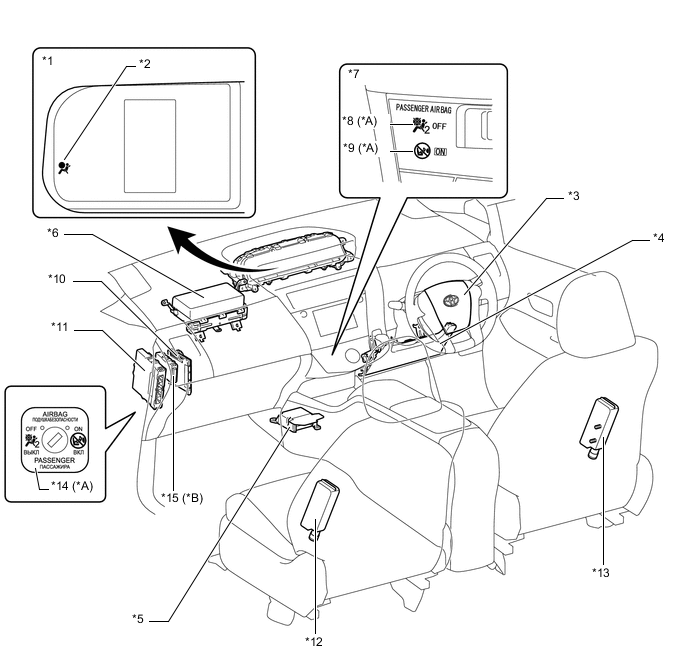

| *1 | Combination Meter Sub-assembly | *2 | SRS Warning Light |
| *3 | Horn Button Assembly - Driver Side Squib |
*4 | Lower No. 1 Instrument Panel Airbag Assembly - Driver Knee Airbag Squib |
| *5 | Airbag ECU Assembly | *6 | Instrument Panel Passenger without Door Airbag Assembly - Front Passenger Side Squib |
| *7 | Air Conditioning Control Assembly | *8 | AIRBAG OFF Indicator Light |
| *9 | AIRBAG ON Indicator Light | *10 | Main Body ECU (Multiplex Network Body ECU) |
| *11 | Hybrid Vehicle Control ECU | *12 | Front Seat Airbag Assembly LH - Front Side Airbag Squib LH |
| *13 | Front Seat Airbag Assembly RH - Front Side Airbag Squib RH |
*14 | Airbag Cut Off Switch Cylinder Sub-assembly |
| *15 | Network Gateway ECU | - | - |
| *A | Models with Airbag Cut Off Switch | *B | Models with Network Gateway ECU |

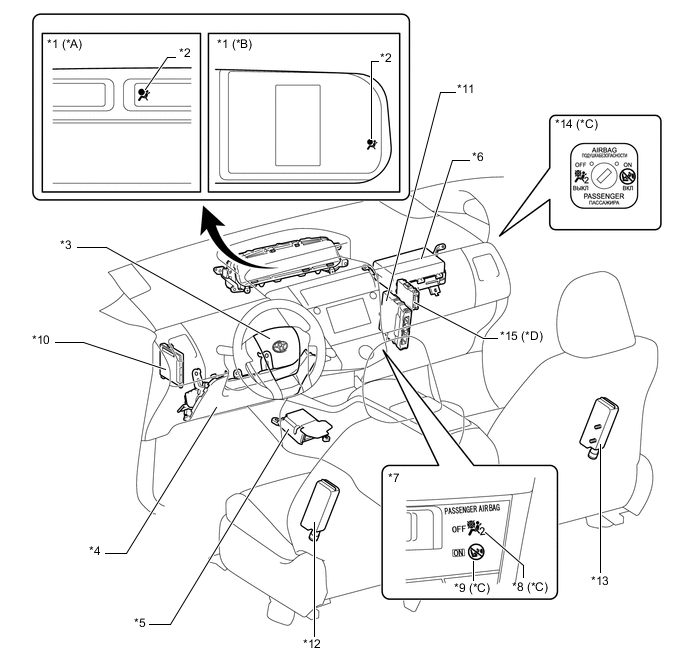

| *1 | Combination Meter Sub-assembly | *2 | SRS Warning Light |
| *3 | Horn Button Assembly - Driver Side Squib |
*4 | Lower No. 1 Instrument Panel Airbag Assembly - Driver Knee Airbag Squib |
| *5 | Airbag ECU Assembly | *6 | Instrument Panel Passenger without Door Airbag Assembly - Front Passenger Side Squib |
| *7 | Air Conditioning Control Assembly | *8 | AIRBAG OFF Indicator Light |
| *9 | AIRBAG ON Indicator Light | *10 | Main Body ECU (Multiplex Network Body ECU) |
| *11 | Hybrid Vehicle Control ECU | *12 | Front Seat Airbag Assembly LH - Front Side Airbag Squib LH |
| *13 | Front Seat Airbag Assembly RH - Front Side Airbag Squib RH |
*14 | Airbag Cut Off Switch Cylinder Sub-assembly |
| *15 | Network Gateway ECU | - | - |
