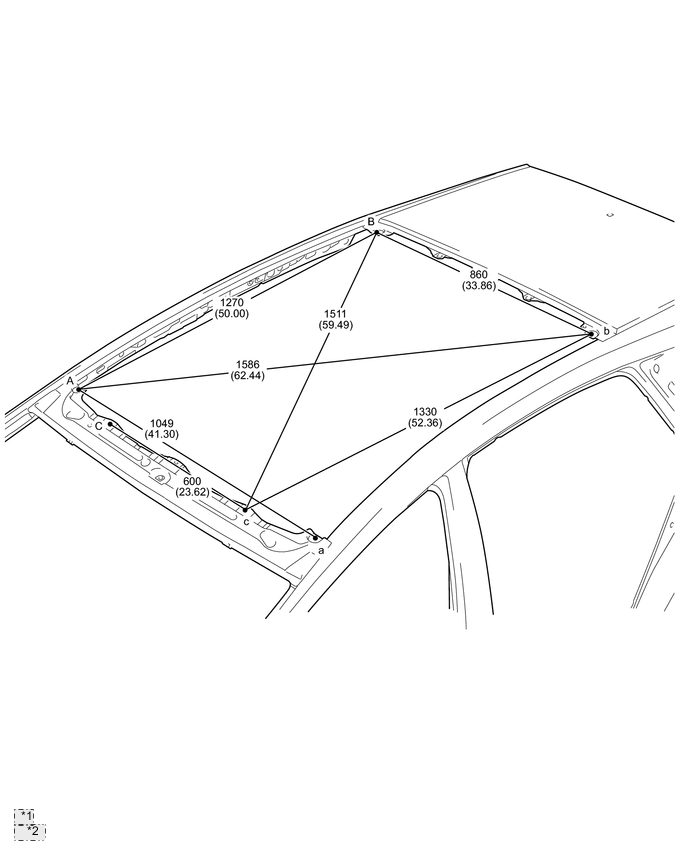

ROOF THREE-DIMENSIONAL DISTANCE

Tech Tips


  • In cases in which only one dimension is given, left and right are symmetrical.


  • For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).

Measuring Point Name
Symbol Name

Hole Diameter

mm (in.)
A, a Panorama Roof Installation Hole φ13 (0.51)
B, b Roof Panel Standard Hole φ10 (0.39)
C, c Windshield Header Outer Panel Standard Hole φ18 (0.71)
A0050LUE01
*1 mm
*2 (in.)
