POWER STEERING SYSTEM Drive Mode Select Switch Circuit

DESCRIPTION

The electronic throttle and the EPS character change by the operation of the drive mode select switch (electric parking brake switch assembly).

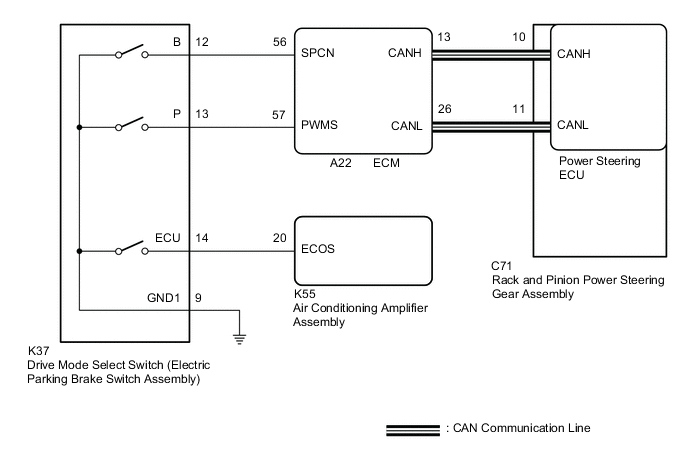

WIRING DIAGRAM

B0087NXE03

PROCEDURE


  1. CHECK THE PROBLEM SYMPTOMS


    1. Check each symptom by checking the suspected areas in the table below.

      Result
      Result Proceed to
      SPORT mode or NORMAL mode is abnormal. A
      ECO mode is abnormal. B

    B

    GO TO AIR CONDITIONING SYSTEM Click here

    A

  2. CHECK CAN COMMUNICATION SYSTEM


    1. Check for DTCs.

      Click here

      Result
      Result Proceed to
      CAN communication system DTCs are not output. A
      CAN communication system DTCs are output. B

    B

    GO TO CAN COMMUNICATION SYSTEM Click here

    A

  3. CHECK HARNESS AND CONNECTOR (DRIVE MODE SELECT SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) - BODY GROUND)


    1. Turn the ignition switch off.

    2. B0087WNC09
      *a

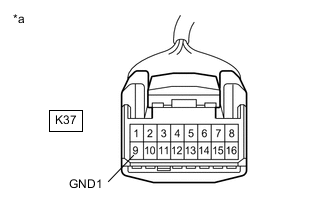

      Front view of wire harness connector

      (to Drive mode select switch (electric parking brake switch assembly))

      Disconnect the K37 drive mode select switch (electric parking brake switch assembly) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K37-9 (GND1) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. INSPECT DRIVE MODE SELECT SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)


    1. Inspect drive mode select switch (electric parking brake switch assembly).

      Click here

      OK
      Drive mode select switch (electric parking brake switch assembly) is normal.
      Result
      Result Proceed to
      CAN communication system DTCs are not output. A
      CAN communication system DTCs are output. B

    B

    REPLACE DRIVE MODE SELECT SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) Click here

    A

  5. CHECK ECM (DRIVE MODE SELECT SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) - ECM)


    1. Reconnect the K37 drive mode select switch (electric parking brake switch assembly) connector.

    2. B0085TVC03
      *a

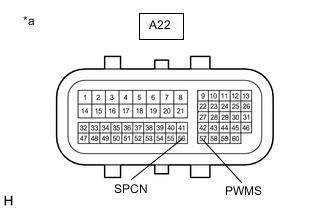

      Front view of wire harness connector

      (to ECM)

      Disconnect the A22 ECM connectors.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A22-57 (PWMS) - Body ground SPORT mode switch being turned and held Below 1 Ω
      A22-57 (PWMS) - Body ground SPORT mode switch not turned 10 kΩ or higher
      A22-56 (SPCN) - Body ground NORMAL mode switch being pushed and held Below 1 Ω
      A22-56 (SPCN) - Body ground NORMAL mode switch not pushed 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE ECM Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
