EXHAUST MANIFOLD COMPONENTS

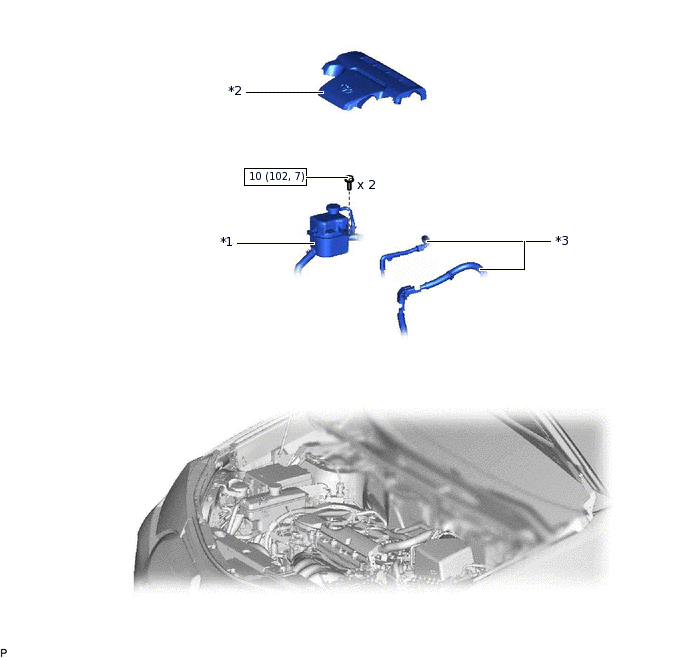

ILLUSTRATION
*1 |
INVERTER RESERVE TANK ASSEMBLY |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*3 |
WIRE HARNESS |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

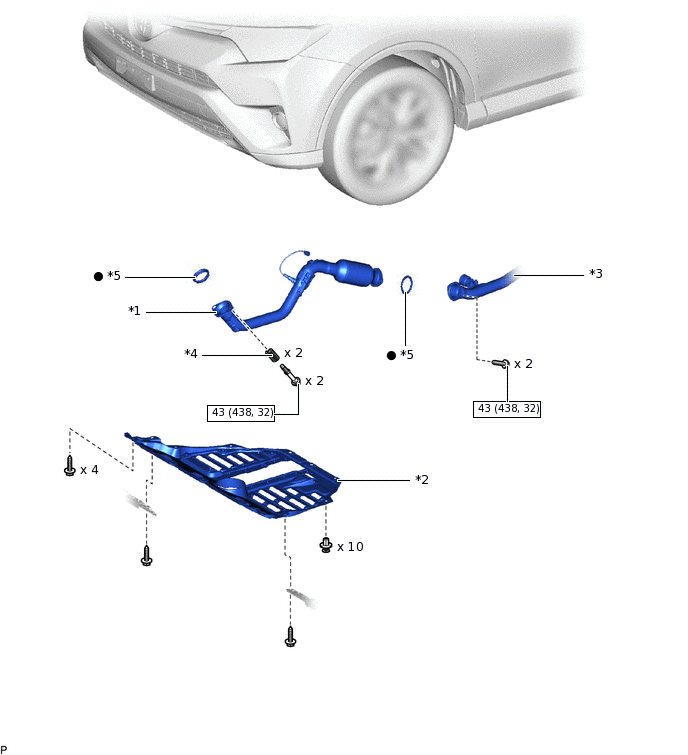

ILLUSTRATION
*1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
NO. 1 ENGINE UNDER COVER |
*3 |
CENTER EXHAUST PIPE ASSEMBLY |
*4 |
COMPRESSION SPRING |
*5 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

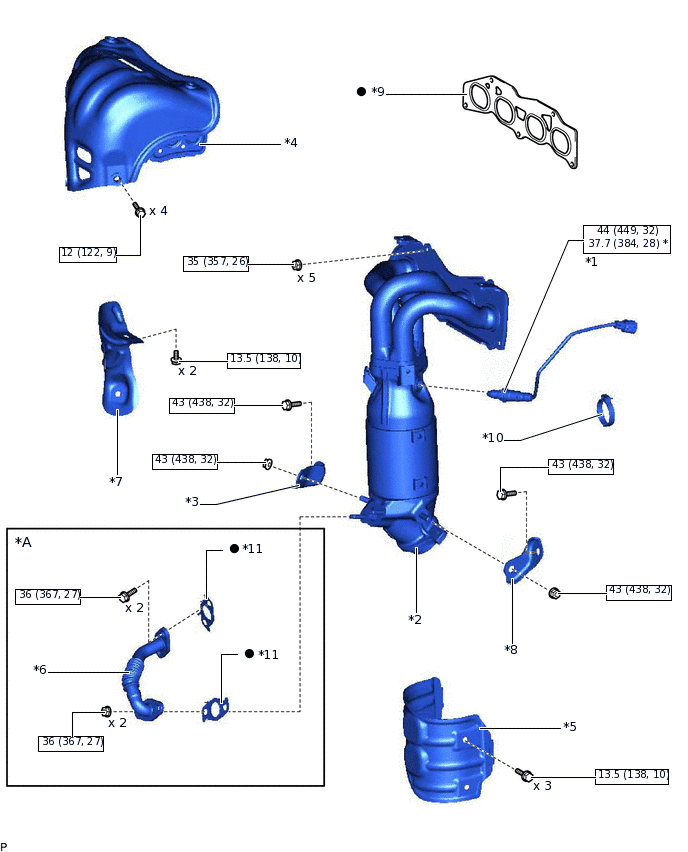

ILLUSTRATION
*A |
w/ EGR System |
- |
- |
*1 |
AIR FUEL RATIO SENSOR |
*2 |
EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY |
*3 |
MANIFOLD STAY |
*4 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*5 |
NO. 1 MANIFOLD CONVERTER INSULATOR |
*6 |
NO. 2 EGR PIPE |
*7 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
*8 |
NO. 2 MANIFOLD STAY |
*9 |
EXHAUST MANIFOLD TO HEAD GASKET |
*10 |
HOSE CLAMP |
*11 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
● |
Non-reusable part |
- |
- |
