DYNAMIC RADAR CRUISE CONTROL SYSTEM

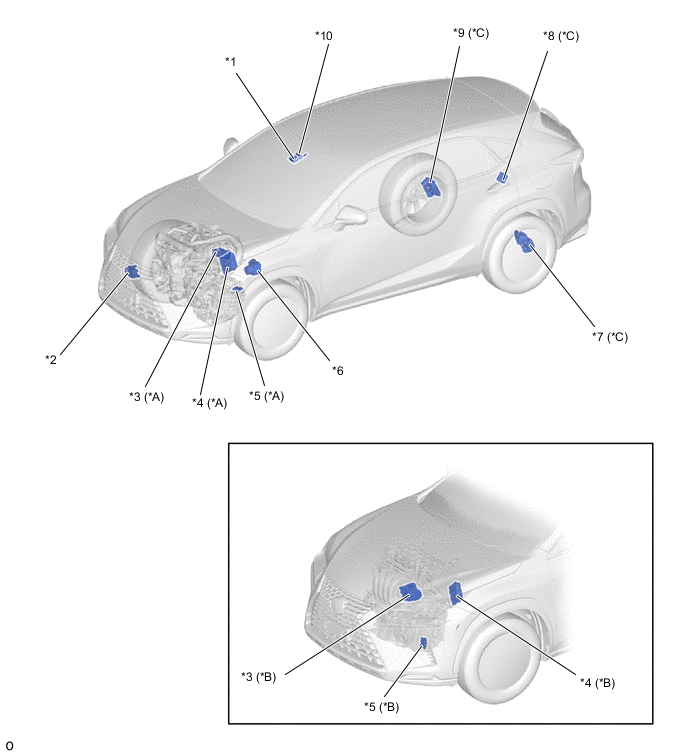

| *A | Models with 8AR-FTS Engine | *B | Models with 3ZR-FAE Engine |
| *C | Models with Full-speed Range Following Function | - | - |
| *1 | Camera Heater (Forward Recognition Hood with Heater Sub-assembly) | *2 | Millimeter Wave Radar Sensor Assembly |
| *3 | Throttle Body with Motor Assembly | *4 | ECM |
| *5 | Park/Neutral Position Switch Assembly | *6 | Brake Actuator Assembly
|
| *7 | Parking Brake Actuator Assembly LH | *8 | Parking Brake ECU Assembly |
| *9 | Parking Brake Actuator Assembly RH | *10 | Forward Recognition Camera |

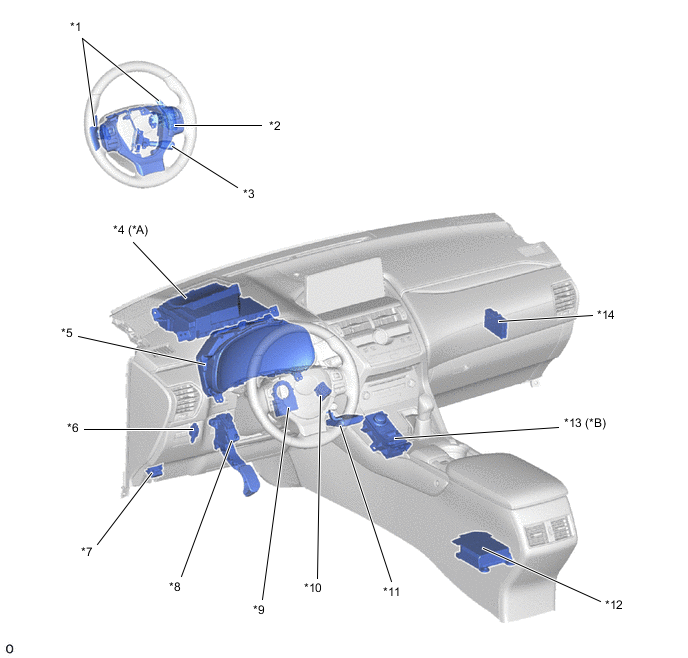

| *A | Models with Headup Display | *B | Models with Full-speed Range Following Function |
| *1 | Paddle Shift Switch (Transmission Shift Switch Assembly) | *2 | Steering Pad Switch Assembly
|
| *3 | Cruise Control Main Switch | *4 | Headup Display (Combination Meter Mirror ECU) |
| *5 | Combination Meter Assembly | *6 | Stop Light Switch Assembly |
| *7 | DLC3 | *8 | Accelerator Pedal Sensor Assembly |
| *9 | Steering Sensor | *10 | Pre-collision City Buzzer (Skid Control Buzzer) |
| *11 | Driving Support ECU Assembly | *12 | Airbag ECU Assembly |
| *13 | Integration Control and Panel Assembly
|
*14 | Central Gateway ECU (Network Gateway ECU) |
