FOG LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE FRONT BUMPER ASSEMBLY

    Click here

  2. REMOVE FOG LIGHT ASSEMBLY

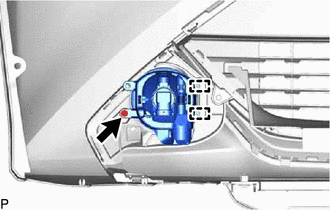

    1. E392072

      Remove the screw.

    2. Disengage the 2 guides to remove the fog light assembly.
