AIRBAG SYSTEM(w/o Occupant Classification System), Diagnostic DTC:B1610/13

DTC Code DTC Name
B1610/13 Front Airbag Sensor RH Malfunction

DESCRIPTION

The front airbag sensor RH consists of a diagnostic circuit and frontal deceleration sensor, etc.

If the airbag sensor assembly receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

DTC B1610/13 is stored when a malfunction is detected in the front airbag sensor RH circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1610/13

Front Airbag Sensor RH Malfunction

Either condition is met:

  • A front airbag sensor RH malfunction.

  • A airbag sensor assembly malfunction.

  • Front airbag sensor RH

  • Airbag sensor assembly

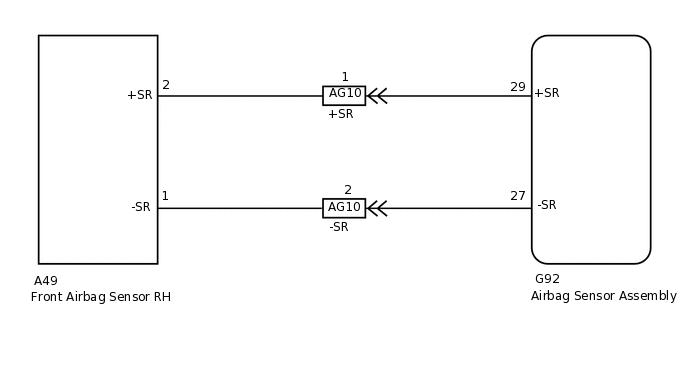

WIRING DIAGRAM

C279108E01

CAUTION / NOTICE / HINT

Note:

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click hereClick hereClick hereClick here

  • When disconnecting the cable from the negative (-) auxiliary battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  • After replacing the airbag sensor assembly, refer to initialization.

    Click hereClick hereClick here

PROCEDURE

  1. CHECK FRONT AIRBAG SENSOR RH

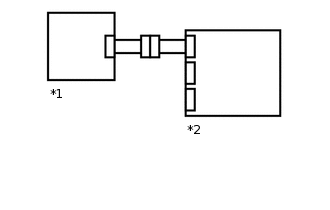

    1. C171014C02

      *1

      Front Airbag Sensor LH

      *2

      Airbag Sensor Assembly

      Turn the power switch off.

    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    3. Interchange the front airbag sensor RH with LH and connect the connectors to them.

    4. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

    5. Turn the power switch to on (IG), and wait for at least 60 seconds.

    6. Clear the DTCs stored in memory.

      Click here

      Body Electrical > SRS Airbag > Clear DTCs

    7. Turn the power switch off.

    8. Turn the power switch to on (IG), and wait for at least 60 seconds.

    9. Check for DTCs.

      Click here

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to

      DTC B1610/13 is output

      DTC B1615/14 is output

      DTC B1610/13 and B1615/14 are not output
      Tip:

      Codes other than DTC B1610/13 and B1615/14 may be output at this time, but they are not related to this check.

    10. Turn the power switch off.

    11. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    12. Return the front airbag sensor LH and RH to their original positions and connect the connectors to them.

    DTC B1610/13 is output

    REPLACE AIRBAG SENSOR ASSEMBLY

    Click here

    DTC B1615/14 is output

    REPLACE FRONT AIRBAG SENSOR RH

    Click here

    DTC B1610/13 and B1615/14 are not output

    USE SIMULATION METHOD TO CHECK

    Click here
