REAR FLOOR SIDE PANEL ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol Meaning
    A0050HS Remove Weld Points
    A0050JA Remove Weld Points

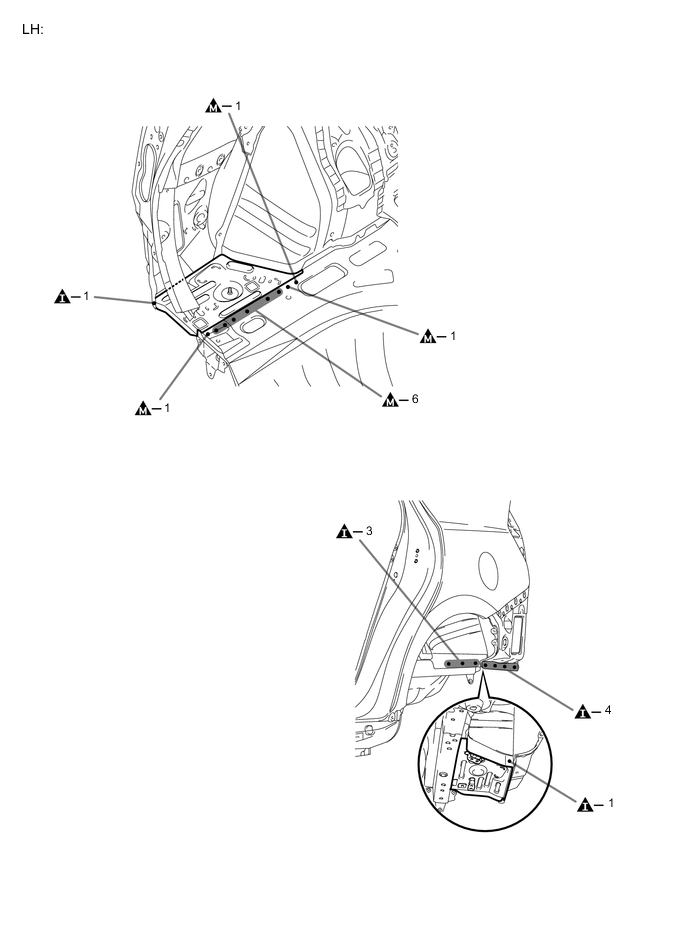

    A0050DCE01

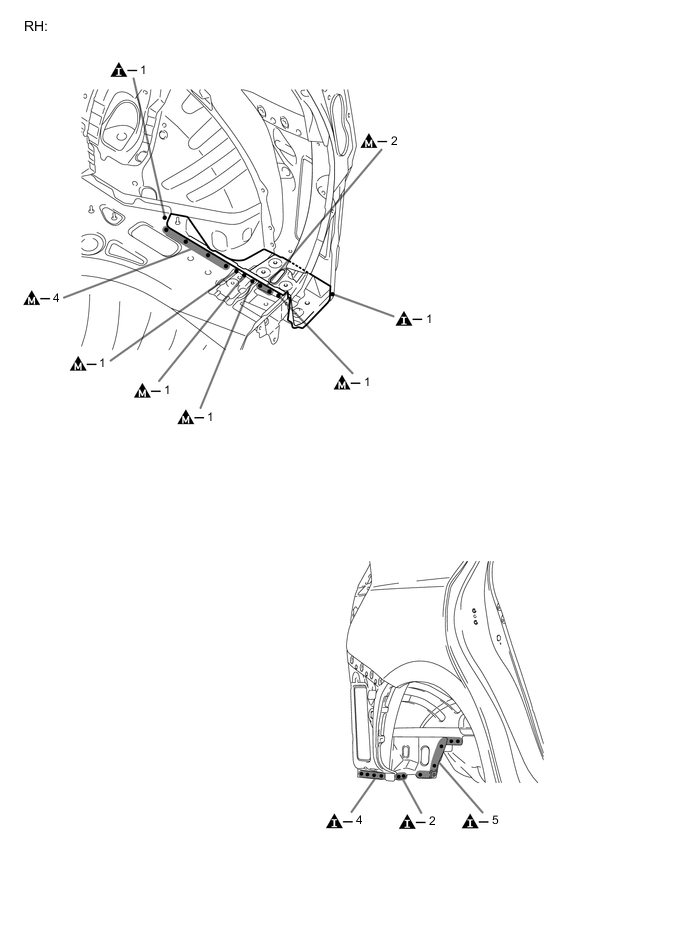

    A0050N4E01

  2. INSTALLATION

    Symbol Meaning
    A0050L9 Plug Weld
    A0050HG Plug Weld

      INSTALLATION POINT

    1. When welding *1, make a hole on a new part for plug welding and weld the panel with the panel behind completely.

    2. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

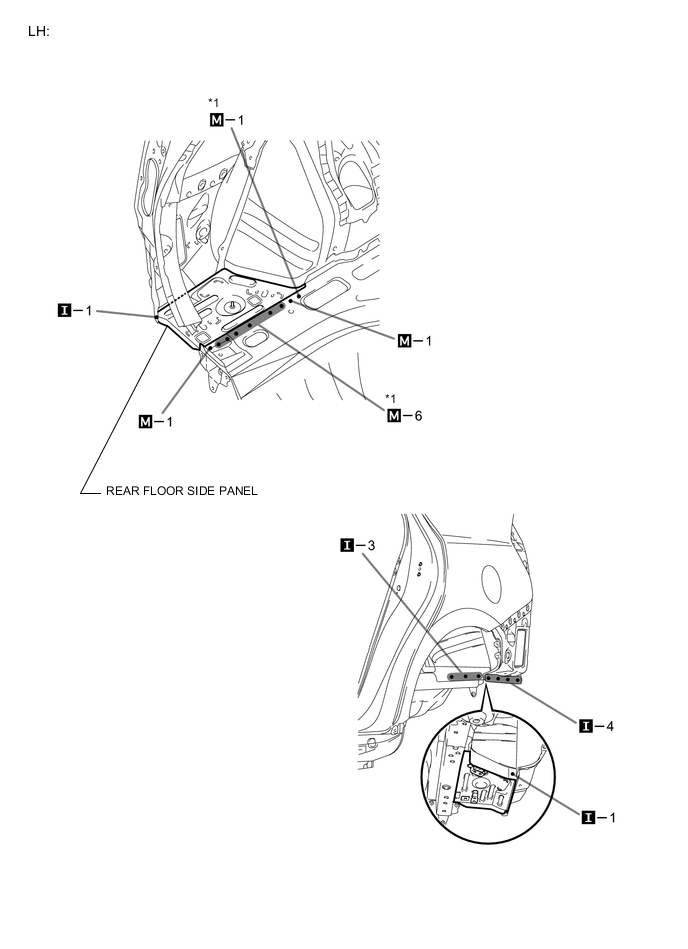

    A0050LBE01

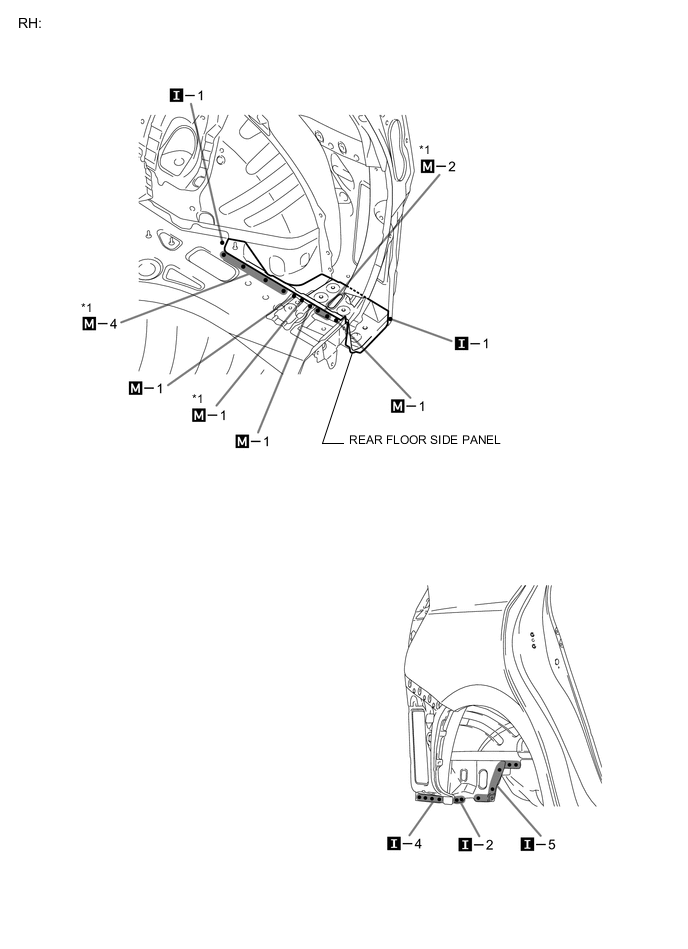

    A0050J9E01
