OIL COOLER COMPONENTS

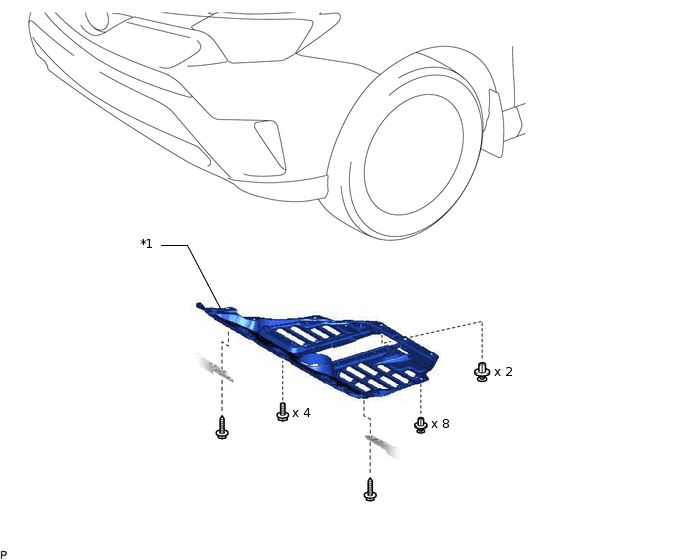

ILLUSTRATION

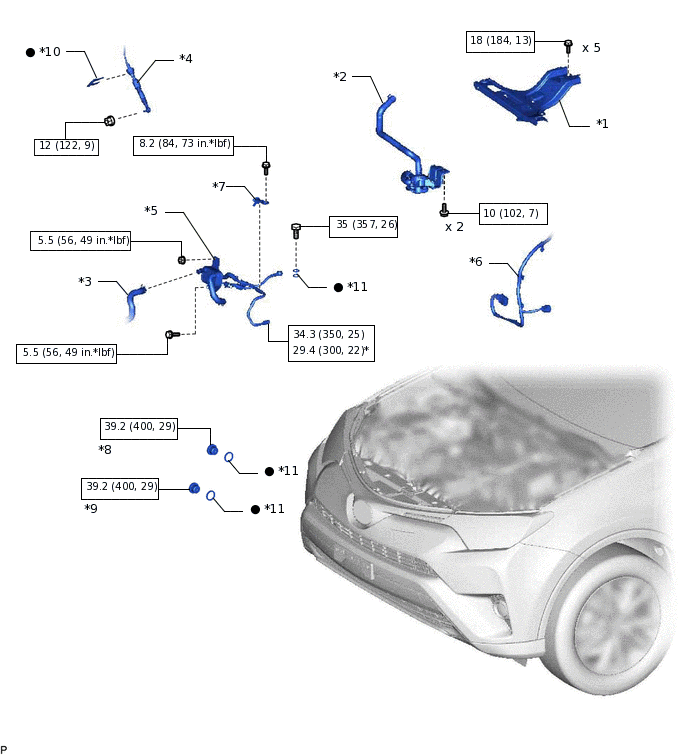

*1 |
NO. 1 ENGINE UNDER COVER |
- |
- |
ILLUSTRATION
*1 |
INVERTER BRACKET ASSEMBLY |
*2 |
INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
*3 |
NO. 5 INVERTER COOLING HOSE |
*4 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*5 |
TRANSMISSION OIL COOLER ASSEMBLY |
*6 |
WIRE HARNESS |
*7 |
NO. 1 OIL COOLER TUBE CLAMP |
*8 |
FILLER PLUG |
*9 |
DRAIN PLUG |
*10 |
CLIP |
*11 |
GASKET |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with union nut wrench |
● |
Non-reusable part |
- |
- |
