BRAKE MASTER CYLINDER(for RHD) COMPONENTS

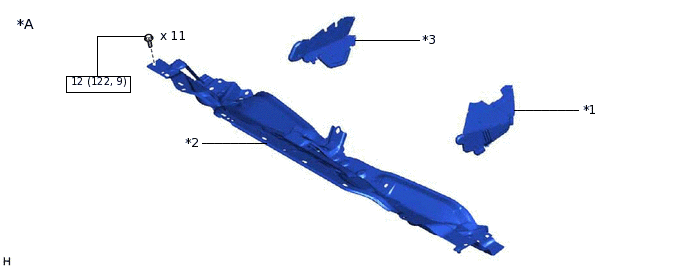

ILLUSTRATION
*A |
for Sedan |
- |
- |
*1 |
NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL |
*2 |
OUTER COWL TOP PANEL |
*3 |
WATER GUARD PLATE LH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

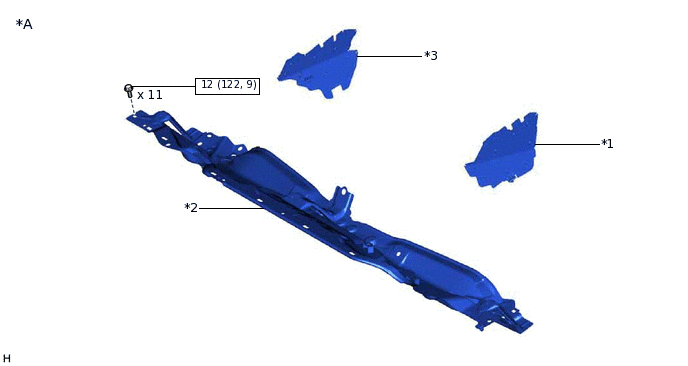

ILLUSTRATION
*A |
for Hatchback, Wagon |
- |
- |
*1 |
NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL |
*2 |
OUTER COWL TOP PANEL |
*3 |
WATER GUARD PLATE LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
for Manual Transaxle |
- |
- |
*1 |
BRAKE MASTER CYLINDER SUB-ASSEMBLY |
*2 |
CLUTCH RESERVOIR TUBE |
*3 |
BRAKE MASTER CYLINDER O-RING |
*4 |
BRAKE BOOSTER ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
ILLUSTRATION
*1 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*2 |
BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY |
*3 |
BRAKE MASTER CYLINDER RESERVOIR STRAINER |
*4 |
MASTER CYLINDER RESERVOIR GROMMET |
*5 |
BRAKE MASTER CYLINDER BODY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
- |
- |
