HEADLIGHT ASSEMBLY REASSEMBLY

PROCEDURE

  1. INSTALL HEADLIGHT COVER

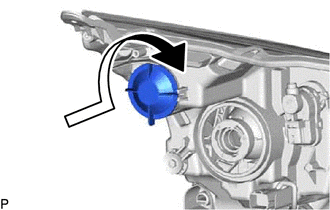

    1. E392060

      Turn the headlight cover as shown in the illustration to install it.

  2. INSTALL HEADLIGHT SOCKET COVER

    1. E392058

      Install the headlight socket cover.

  3. INSTALL HEADLIGHT UNIT ASSEMBLY

  4. INSTALL FRONT TURN SIGNAL LIGHT SOCKET

  5. INSTALL FRONT TURN SIGNAL LIGHT BULB

    1. Install the front turn signal light bulb to the front turn signal light socket.

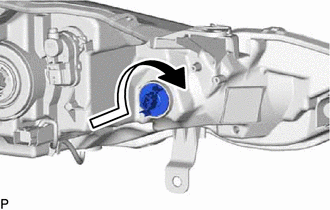

    2. E392057

      Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.

  6. INSTALL NO. 1 HEADLIGHT BULB

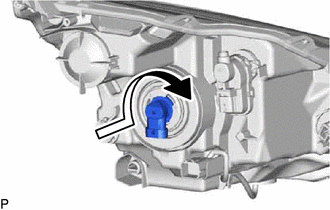

    1. E392055

      Turn the No. 1 headlight bulb as shown in the illustration to install it.

      Note:

      Do not touch the bulb glass.
