REAR SEATBACK HEATER(for RH Side) REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

   Click here

2. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

   Tip:

   Use the same procedure described for the LH side.

   Click here

3. REMOVE REAR DOOR SCUFF PLATE RH

   Tip:

   Use the same procedure described for the LH side.

   Click here

4. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

   Tip:

   Use the same procedure described for the No. 3 battery service cover board.

   Click here

5. REMOVE REAR SEATBACK ASSEMBLY RH

   Click here

6. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

   Click here

7. REMOVE REAR SEAT HEADREST ASSEMBLY RH

   Click here

8. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH

   Click here

9. REMOVE REAR SEAT CUSHION MOULDING RH

   Click here

10. REMOVE REAR SEAT CUSHION MOULDING RH

    Click here

11. REMOVE REAR SEAT NO. 2 RECLINING CONTROL CABLE

    Click here

12. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY

    Click here

13. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Click here

14. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

    Click here

15. REMOVE REAR SEATBACK HEATER ASSEMBLY

    1.

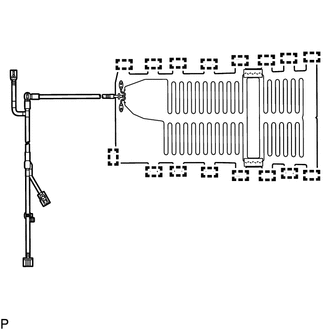

       Cut off the 16 tack pins which fasten the rear seatback heater assembly, and then remove the rear seatback heater assembly from the separate type rear seatback cover RH.

       Note:

       Be careful not to damage the separate type rear seatback cover RH and rear seatback heater assembly.
