POWER BACK DOOR CLOSER SWITCH REMOVAL

PROCEDURE

  1. REMOVE BACK DOOR CENTER GARNISH

    Click here

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Click here

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Tip:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  5. REMOVE DOOR CONTROL SWITCH ASSEMBLY

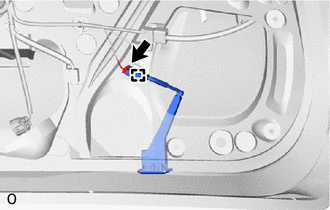

    1. B441557

      Disconnect the connector and detach the clamp.

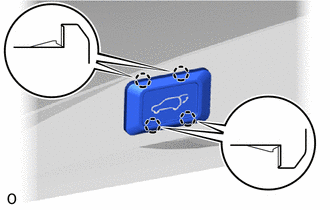

    2. B336841

      Detach the 4 claws and remove the door control switch assembly.
