BODY STRUCTURE


  1. CONSTRUCTION


    1. Anti-corrosion Sheet Steel

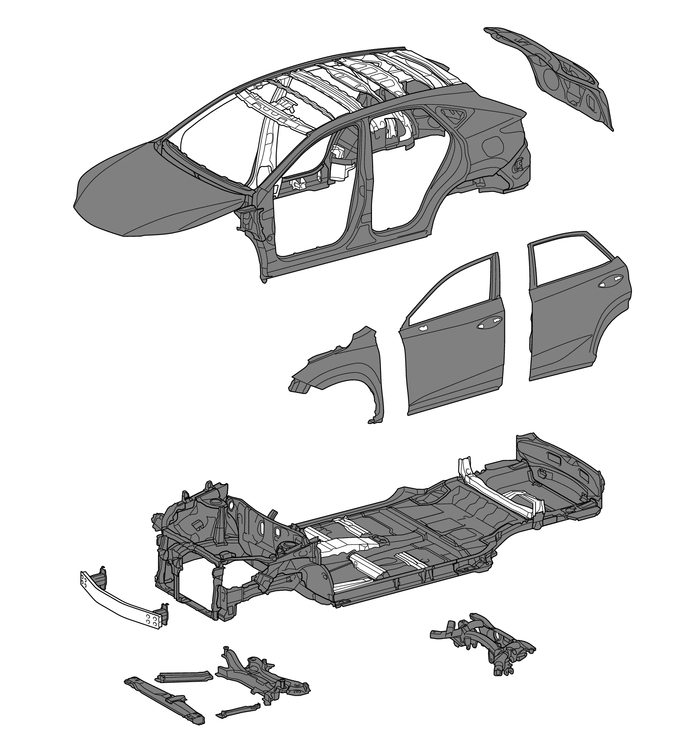

      1. Anti-corrosion sheet steel is used as in the following illustration:

        A01GH48
        B008G8T Anti-corrosion Sheet Steel - -

    2. Anti-chipping Application and Rust-resistant Performance

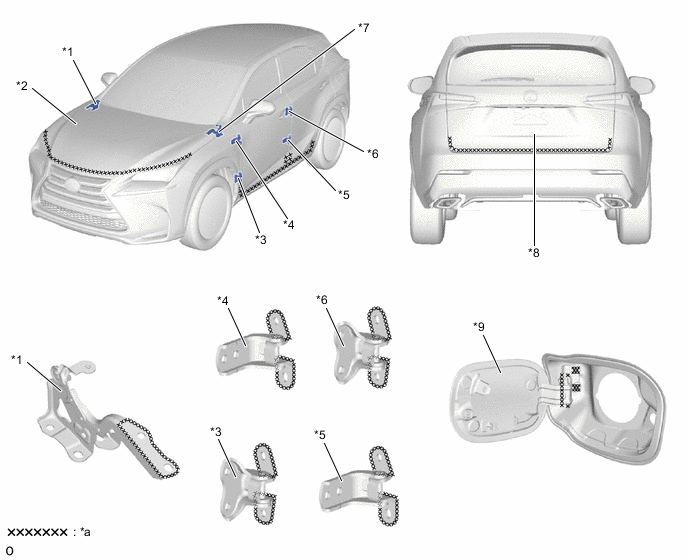

      1. Wax is applied to the edge of the door lower portion, door hinge, fuel filler lid hinge, and the hemmed portions of the hood panel and luggage compartment door panel sub-assembly to improve rust-resistant performance.

        A01GH18C01
        *1 Hood Hinge Assembly RH *2 Hood Sub-assembly
        *3 Front Door Hinge Assembly Lower LH *4 Front Door Hinge Assembly Upper LH
        *5 Rear Door Hinge Assembly Lower LH *6 Rear Door Hinge Assembly Upper LH
        *7 Hood Hinge Assembly LH *8 Back Door Panel Sub-assembly
        *9 Fuel Filler Opening Lid Assembly - -
        *a Wax - -
        A01GGPEC01

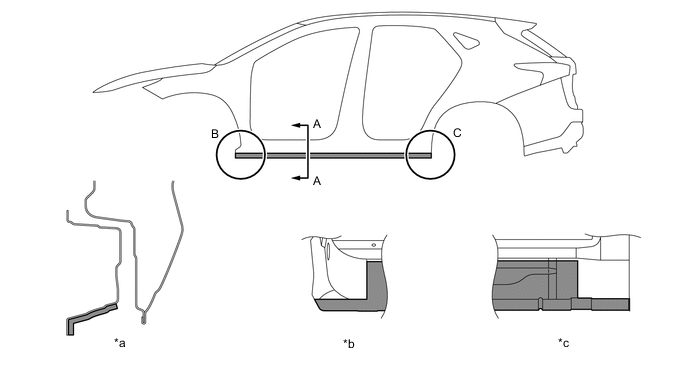

        *a A - A Cross Section *b Enlarged Illustration of B
        *c Enlarged Illustration of C - -
        B008G8T Soft Anti-chipping Primer Application Range - -

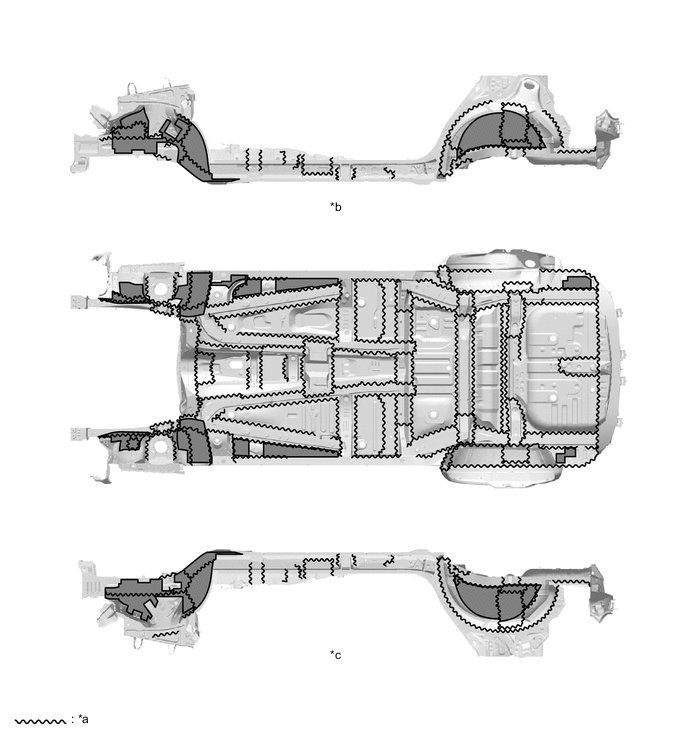

      2. Polyvinyl Chloride (PVC) coating is applied to the wheel housings, and other parts that are located where they are susceptible to stone chipping damage, improving the rust-resistance of these areas.

        A01GGLVC01
        *a Edge Seal *b Left Side View
        *c Right Side View - -
