RADIATOR COMPONENTS

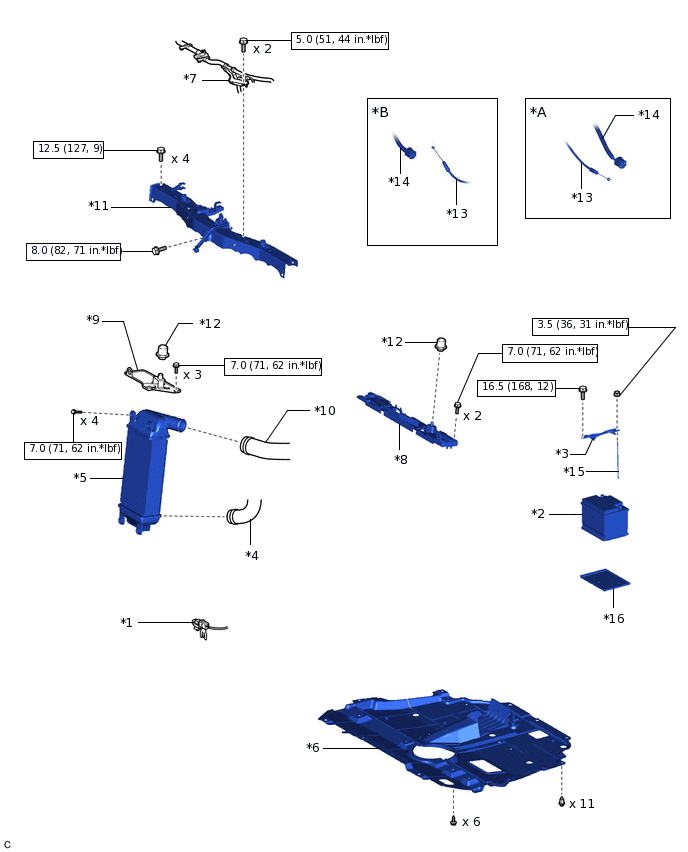

ILLUSTRATION
*A |
for RHD |
*B |
for LHD |
*1 |
THERMISTOR ASSEMBLY |
*2 |
BATTERY |
*3 |
BATTERY CLAMP SUB-ASSEMBLY |
*4 |
NO. 3 AIR HOSE |
*5 |
INTERCOOLER ASSEMBLY |
*6 |
NO. 1 ENGINE UNDER COVER |
*7 |
NO. 1 WATER HOSE CLAMP BRACKET |
*8 |
NO. 2 FAN SHROUD |
*9 |
NO. 1 RADIATOR SUPPORT |
*10 |
NO. 2 AIR HOSE |
*11 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
*12 |
RADIATOR SUPPORT CUSHION |
*13 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*14 |
WIRE HARNESS |
*15 |
BATTERY BOLT |
*16 |
BATTERY TRAY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
FAN SHROUD |
*2 |
NO. 2 RADIATOR HOSE |
*3 |
NO. 3 RADIATOR HOSE |
*4 |
NO. 3 WATER BY-PASS HOSE |
*5 |
RADIATOR ASSEMBLY |
*6 |
LOWER RADIATOR SUPPORT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
