REAR SEAT ASSEMBLY(for Wagon) COMPONENTS
ILLUSTRATION
*A |
w/ Deck Board |
- |
- |
*1 |
DECK BOARD ASSEMBLY |
*2 |
DECK BOARD SUB-ASSEMBLY |
*3 |
FRONT DECK FLOOR BOX |
*4 |
REAR FLOOR MAT ASSEMBLY |

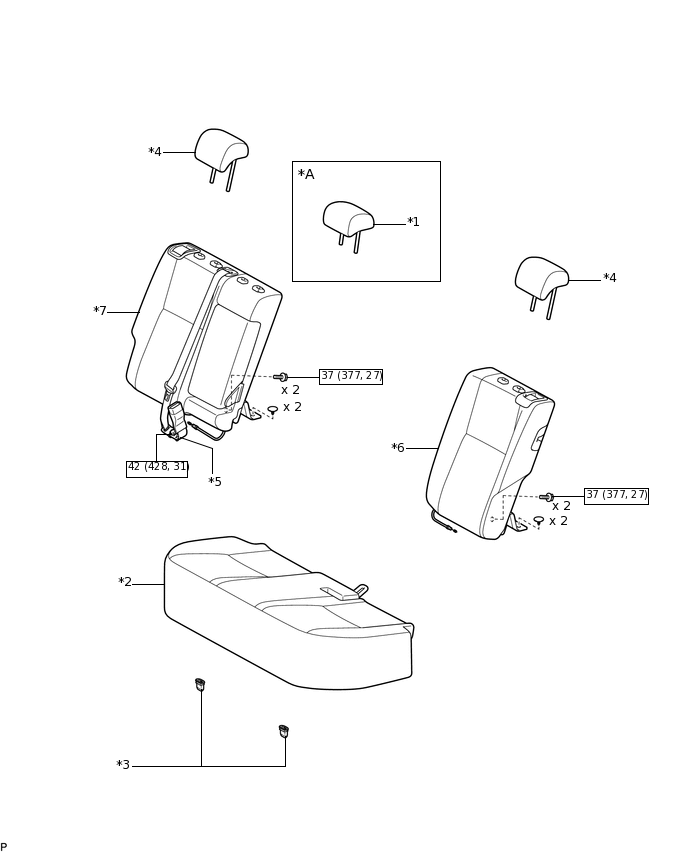

ILLUSTRATION
*A |
w/ Center Headrest |
- |
- |
*1 |
REAR SEAT CENTER HEADREST ASSEMBLY |
*2 |
REAR SEAT CUSHION ASSEMBLY |
*3 |
REAR SEAT CUSHION LOCK HOOK |
*4 |
REAR SEAT HEADREST ASSEMBLY |
*5 |
REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |
*6 |
REAR SEATBACK ASSEMBLY LH |
*7 |
REAR SEATBACK ASSEMBLY RH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

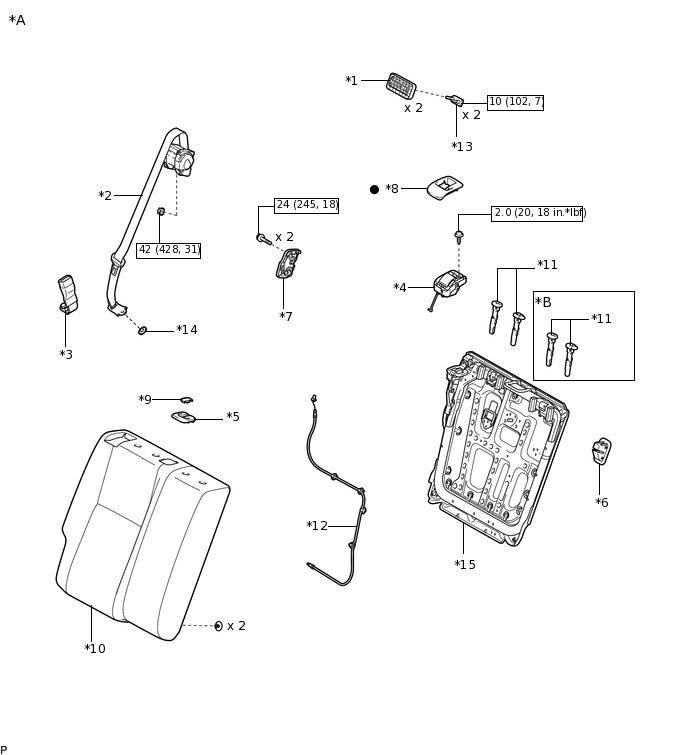

ILLUSTRATION
*A |
for RH Side |
*B |
w/ Center Headrest |
*1 |
BACK PANEL TRIM COVER |
*2 |
REAR CENTER SEAT OUTER BELT ASSEMBLY |
*3 |
REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |
*4 |
REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH |
*5 |
REAR SEAT SHOULDER BELT COVER |
*6 |
REAR SEATBACK COVER |
*7 |
REAR SEATBACK LOCK ASSEMBLY RH |
*8 |
REAR SEATBACK LOCK BEZEL RH |
*9 |
SEAT BELT ANCHOR COVER CAP |
*10 |
SEATBACK COVER WITH PAD |
*11 |
REAR SEAT HEADREST SUPPORT |
*12 |
REAR NO. 1 SEAT LOCK CABLE ASSEMBLY |
*13 |
ROOM PARTITION NET ANCHOR |
*14 |
WASHER |
*15 |
REAR SEATBACK FRAME SUB-ASSEMBLY RH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

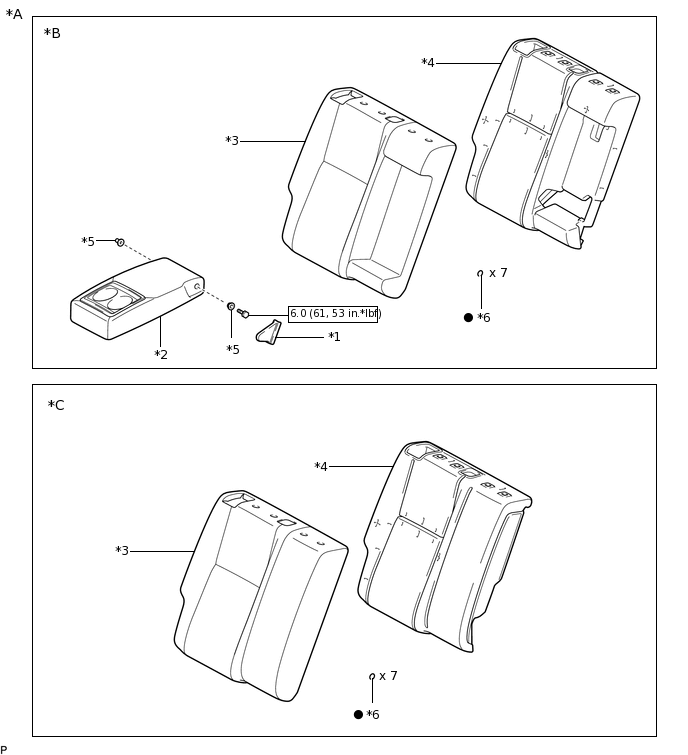

ILLUSTRATION
*A |
for RH Side |
*B |
w/ Center Armrest |
*C |
w/o Center Armrest |
- |
- |
*1 |
CENTER ARMREST HINGE COVER |
*2 |
REAR SEAT CENTER ARMREST ASSEMBLY |
*3 |
SEPARATE TYPE REAR SEATBACK COVER RH |
*4 |
SEPARATE TYPE REAR SEATBACK PAD RH |
*5 |
BUSH |
*6 |
HOG RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

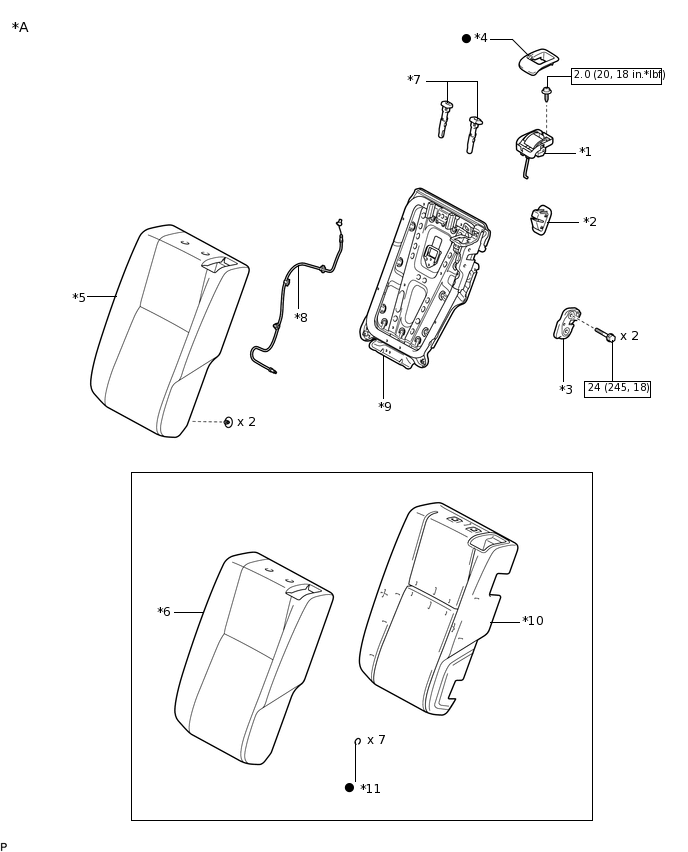

ILLUSTRATION
*A |
for LH Side |
- |
- |
*1 |
REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH |
*2 |
REAR SEATBACK COVER |
*3 |
REAR SEATBACK LOCK ASSEMBLY LH |
*4 |
REAR SEATBACK LOCK BEZEL LH |
*5 |
SEATBACK COVER WITH PAD |
*6 |
SEPARATE TYPE REAR SEATBACK COVER LH |
*7 |
REAR SEAT HEADREST SUPPORT |
*8 |
REAR NO. 1 SEAT LOCK CABLE ASSEMBLY |
*9 |
REAR SEATBACK FRAME SUB-ASSEMBLY LH |
*10 |
SEPARATE TYPE REAR SEATBACK PAD LH |
*11 |
HOG RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
ILLUSTRATION
*1 |
BENCH TYPE REAR SEAT CUSHION COVER |
*2 |
BENCH TYPE REAR SEAT CUSHION PAD |
*3 |
HOG RING |
- |
- |
● |
Non-reusable part |
- |
- |
