FRONT DOOR THREE-DIMENSIONAL DISTANCE
Tech Tips
-

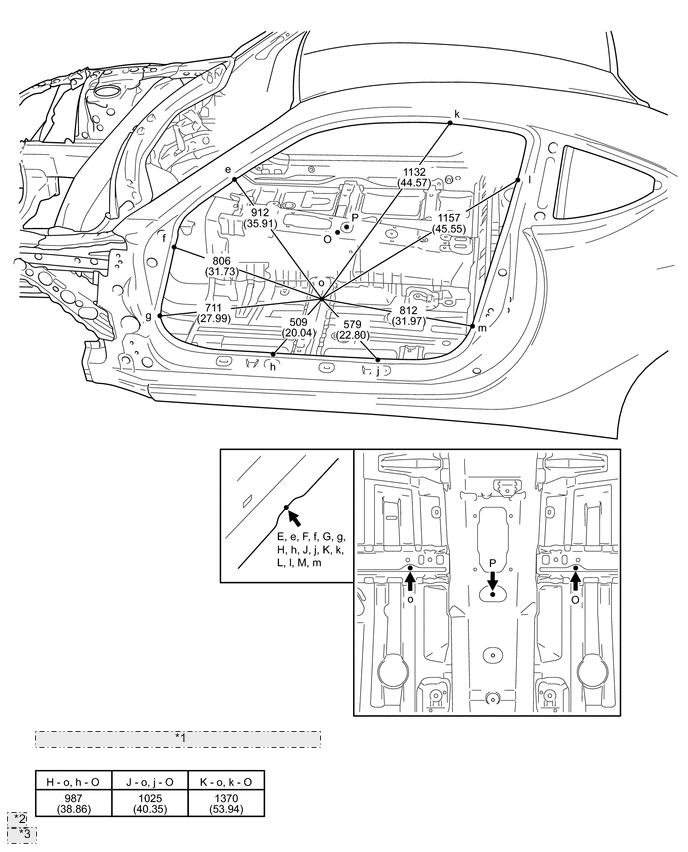

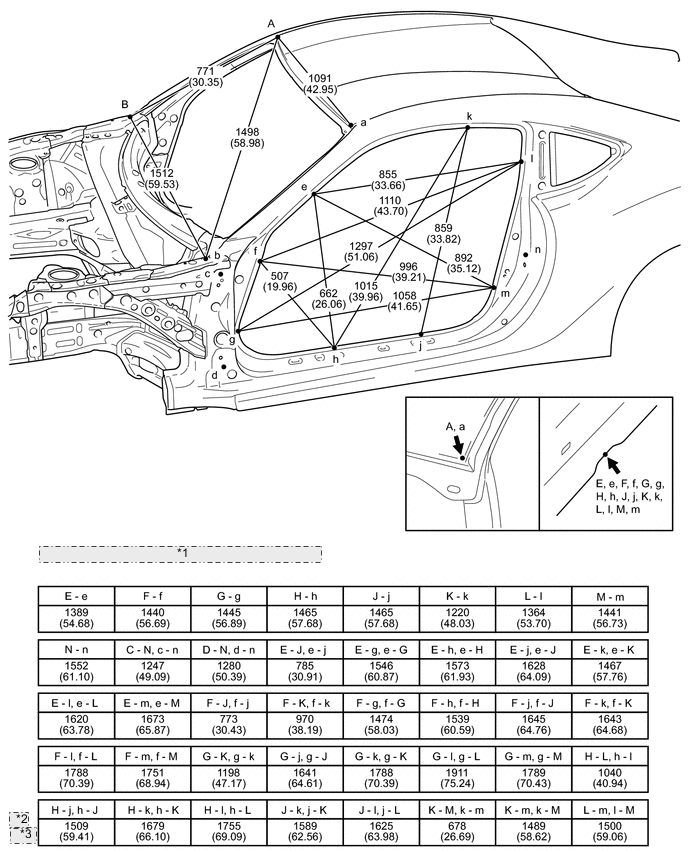

Use specification P when performing centering measurements for the body dimensions.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Roof Panel Corner | - |
| B, b | Hood Hinge Installation Nut | M8 (0.31) |
| C, c | Front Door Hinge Installation Nut | M8 (0.31) |
| D, d | Front Door Hinge Installation Nut | M8 (0.31) |
| E, e | Front Body Pillar Assembly Mark | - |
| F, f | Front Body Pillar Assembly Mark | - |
| G, g | Front Body Pillar Assembly Mark | - |
| H, h | Rocker Panel Assembly Mark | - |
| J, j | Rocker Panel Assembly Mark | - |
| K, k | Roof Side Rail Assembly Mark | - |
| L, l | Center Body Pillar Assembly Mark | - |
| M, m | Center Body Pillar Assembly Mark | - |
| N, n | Front Door Lock Striker Installation Nut | M8 (0.31) |
| O, o | Front Floor Cross Member Standard hole | φ14 (0.55) |
| P | Hand Brake Installation Nut | M8 (0.31) |
| *1 | Distance between points other than those above |
| *2 | mm |
| *3 | (in.) |
| *1 | Distance between points other than those above |
| *2 | mm |
| *3 | (in.) |
