REAR AXLE HUB ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

Note:

  • When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTC C1214 may be output. As there is no malfunction, clear the DTC.

  • While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch is turned on. Therefore, even if only brake shoes are to be removed and installed, be sure to perform the Disable Brake Control procedure and disconnect the cable from the negative (-) terminal of the auxiliary battery before beginning work.

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.

    (Click hereClick hereClick hereClick here)

  2. DISABLE BRAKE CONTROL

    Click here

  3. REMOVE REAR WHEEL

    Click here

  4. DISCONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH

    Click hereClick here

  5. REMOVE REAR DISC

    Click here

  6. INSPECT REAR AXLE HUB BEARING LOOSENESS

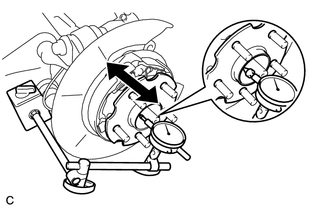

    1. C130656

      Using a dial indicator, check for looseness near the center of the axle hub.

      Maximum

      0.05 mm (0.00197 in.)

      Note:

      Make sure that the dial indicator is set perpendicular to the measurement surface.

      If the looseness is more than the maximum, replace the axle hub assembly.

  7. INSPECT REAR AXLE HUB RUNOUT

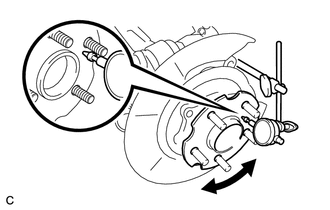

    1. C202386

      Using a dial indicator, check for runout on the surface of the axle hub inside the rear axle hub bolt.

      Maximum

      for 2WD: 0.08 mm (0.00315 in.)

      for AWD: 0.06 mm (0.00236 in.)

      Note:

      Make sure that the dial indicator is set perpendicular to the measurement surface.

      If the looseness is more than the maximum, replace the axle hub assembly.

  8. INSTALL REAR DISC

    Click here

  9. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH

    Click here

  10. INSPECT AND ADJUST PARKING BRAKE

    Click here

  11. INSTALL REAR WHEEL

    Click here

  12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    1. Connect the cable to the negative (-) auxiliary battery terminal and tighten the nut.

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

  13. PERFORM INITIALIZATION

    Click hereClick hereClick here
