HEADLIGHT ASSEMBLY REASSEMBLY

PROCEDURE

  1. INSTALL FRONT TURN SIGNAL LIGHT BULB

    1. Install the front turn signal light bulb to the front turn signal light socket.

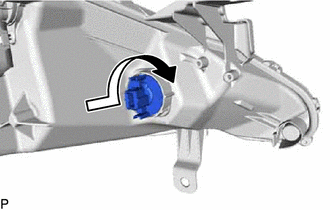

    2. E290968

      Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.

  2. INSTALL NO. 1 HEADLIGHT BULB

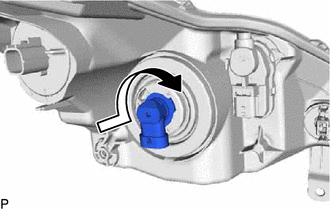

    1. E290970

      Turn the No. 1 headlight bulb as shown in the illustration to install it.

      Note:

      Do not touch the bulb glass.
