REAR SEATBACK HEATER(for RH Side) COMPONENTS
ILLUSTRATION

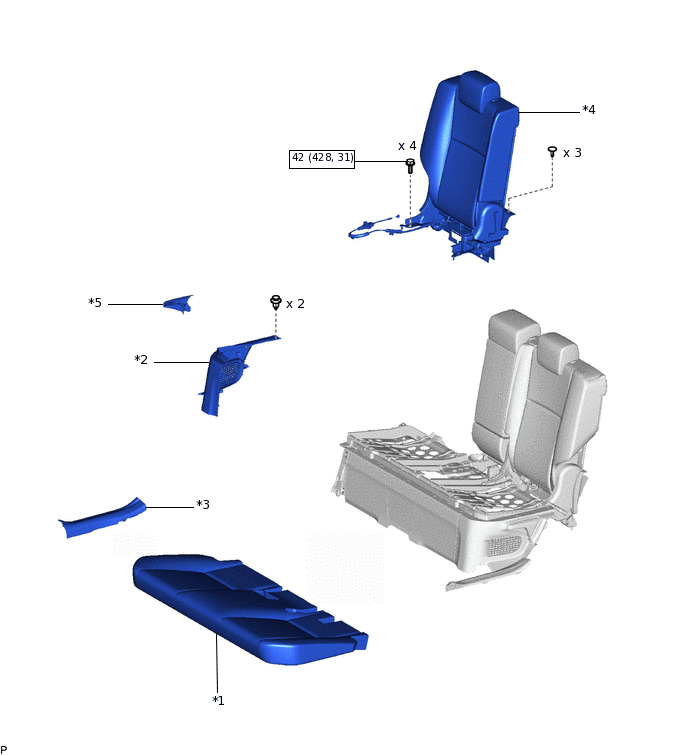

*1 |
BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
*2 |
NO. 2 BATTERY SERVICE COVER BOARD |
*3 |
REAR DOOR SCUFF PLATE RH |
*4 |
REAR SEATBACK ASSEMBLY RH |
*5 |
RECLINING ADJUSTER RELEASE HANDLE RH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION

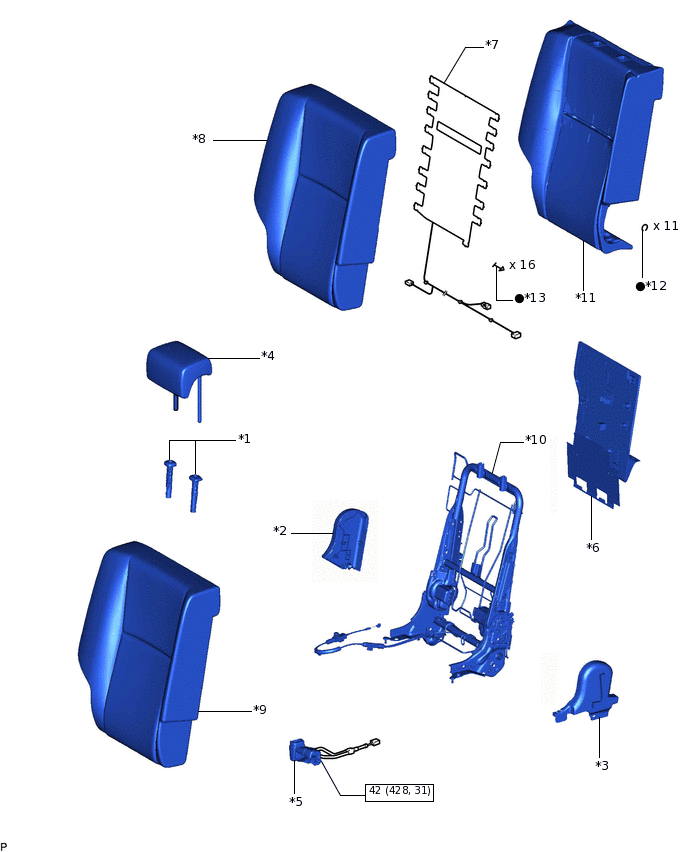

*1 |
REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY |
*2 |
REAR SEAT CUSHION MOULDING RH |
*3 |
REAR SEAT CUSHION MOULDING RH |
*4 |
REAR SEAT HEADREST ASSEMBLY RH |
*5 |
REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |
*6 |
REAR SEATBACK BOARD CARPET ASSEMBLY RH |
*7 |
REAR SEATBACK HEATER ASSEMBLY |
*8 |
SEPARATE TYPE REAR SEATBACK COVER RH |
*9 |
SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
*10 |
REAR SEATBACK FRAME SUB-ASSEMBLY RH |
*11 |
SEPARATE TYPE REAR SEATBACK PAD RH |
*12 |
HOG RING |
*13 |
TACK PIN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
