REAR SEAT ASSEMBLY(for 60/40 Split Seat Type LH Side) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

    Click here

  2. REMOVE REAR SEAT COVER CAP LH (for Manual Seat)

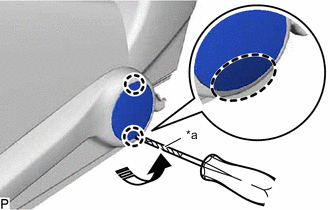

    1. B007YE6C01
      *a Protective Tape
      B008043 Insert Screwdriver Here
      B007Z37 Remove in this Direction

      Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the rear seat cover cap LH as shown in the illustration.

  3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)


    1. A01VY5N

      Remove the 3 screws and No. 1 reclining adjuster release handle LH.

  4. REMOVE POWER SEAT SWITCH ASSEMBLY (for Power Seat)

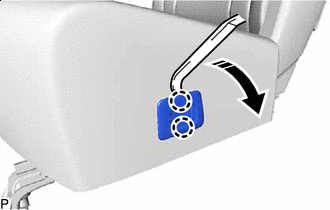

    1. B007ZADC03
      B007Z37 Remove in this Direction

      Using a moulding remover A, disengage the 2 claws as shown in the illustration.

    2. B005Q8N

      Disconnect the connector to remove the power seat switch assembly.

  5. REMOVE REAR POWER SEAT SWITCH LH (for Power Seat)

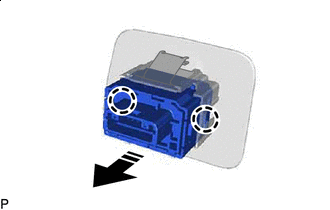

    1. B007YR9C01
      B007Z37 Remove in this Direction

      Disengage the 2 claws and remove the rear power seat switch LH as shown in the illustration.

  6. DISCONNECT SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD


    1. B007WOA

      Disengage the 2 hooks to disconnect the separate type rear seat cushion cover with pad.

  7. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)


    1. B007YRH

      Disconnect the 2 connectors.

    2. Disengage the 2 clamps to remove the seat heater control sub-assembly.

  8. REMOVE CONNECTOR BRACKET (w/o Seat Belt Warning System)

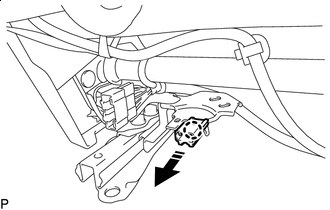

    1. B007Y51C01
      B007Z37 Remove in this Direction

      Disengage the claw and remove the connector bracket as shown in the illustration.

  9. REMOVE CONNECTOR MALE HOUSING (for Manual Seat)


    1. w/o Seat Heater System:


      1. A01VUJT

        Disengage the clamp to remove the connector male housing.

  10. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD


    1. A01VX90

      Disconnect the rubber band.

    2. B007XFVC04
      *A w/ Seat Heater System

      for Manual Seat:


      1. w/ Seat Heater System:


        1. Disconnect the connector.

        2. Disengage the 2 clamps and remove the rear seat wire LH.

      2. Disengage the clamp.

    3. B007XG5C02
      *A w/ Seat Heater System

      for Power Seat:


      1. Disengage the 2 clamps.

      2. w/ Seat Heater System:


        1. Disconnect the connector.

        2. Disengage the 2 clamps.

    4. A01VV5K

      Disengage each hook and remove the separate type rear seat cushion cover with pad.

  11. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER


    1. B008040C01
      B007ZL6 Fastener

      Disengage the fastener.

    2. B007YFJ

      Remove the 6 hog rings.

    3. B007ZTD

      Remove the 20 hog rings and separate type rear seat cushion cover from the separate type rear seat cushion pad.

  12. REMOVE SEAT CUSHION FELT LH

    A01VV2W

    1. Remove the seat cushion felt LH.

  13. REMOVE SEAT COVER WIRE

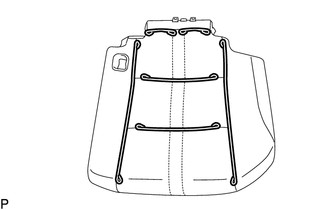

    1. B007WRK

      Remove the 6 seat cover wires.

  14. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

    Click here

  15. REMOVE REAR SEATBACK COVER LH


    1. B005ONV

      Disengage the 2 claws as shown in the illustration.

    2. B007WS7C01
      B007Z37 Remove in this Direction

      Disengage the 6 claws and remove the rear seatback cover LH as shown in the illustration.

  16. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH


    1. A01VVGC

      Disengage the 2 hooks.

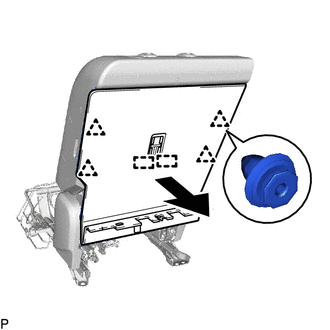

    2. A01VX6E

      Disengage the 4 clips and 2 guides as shown in the illustration.

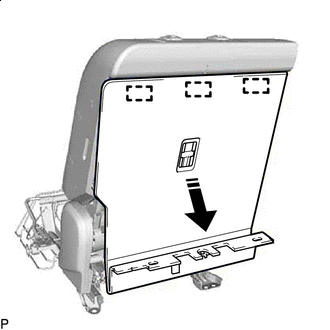

    3. B007YKVC01
      B007Z37 Remove in this Direction

      Disengage the 3 guides to remove the rear seatback board carpet assembly LH as shown in the illustration.

  17. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD


    1. A01VWWP

      Disengage each hook.

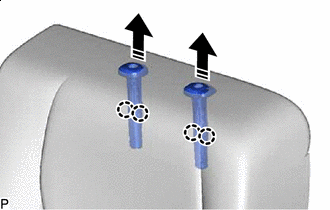

    2. B007ZQBC01
      B007Z37 Remove in this Direction

      Disengage the 4 claws and remove the 2 rear No. 1 seat headrest supports as shown in the illustration.

    3. for Manual Seat:


      1. B007XUBC01
        B007ZL6 Fastener

        Disengage the fastener.

      2. A01VVQD

        Disengage the 2 hooks.

    4. A01VWX4

      Remove the nut and disconnect the 2 rear seatback cover brackets.

    5. Remove the separate type rear seatback cover with pad.

  18. REMOVE SEPARATE TYPE REAR SEATBACK COVER


    1. B007ZZZ

      Remove the 11 hog rings and separate type rear seatback cover from the separate type rear seatback pad.

  19. REMOVE SEAT COVER WIRE

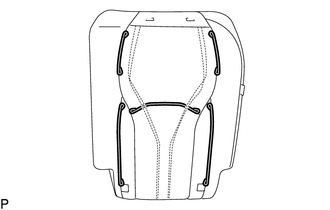

    1. B007YGR

      Remove the 5 seat cover wires.

  20. REMOVE SEATBACK FELT LH


    1. A01VY3E

      Remove the seatback felt LH.

  21. REMOVE REAR SEAT AIRBAG ASSEMBLY LH

    Click here

  22. REMOVE NO. 1 RECLINING LINK COVER LH (for Manual Seat)


    1. B007WQNC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 5 claws and guide to remove the No. 1 reclining link cover LH as shown in the illustration.

  23. REMOVE NO. 2 RECLINING LINK COVER LH (for Manual Seat)

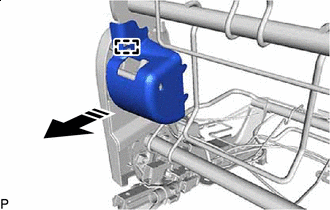

    1. B007ZPOC01
      B007Z37 Remove in this Direction

      Disengage the guide to remove the No. 2 reclining link cover LH as shown in the illustration.

  24. REMOVE NO. 1 RECLINING LINK COVER RH (for Manual Seat)

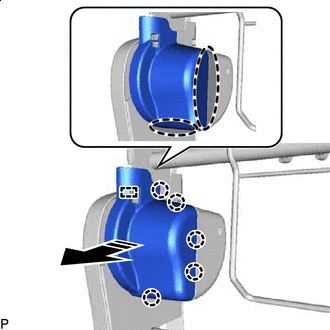

    1. B007YM5C01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 5 claws and guide to remove the No. 1 reclining link cover RH as shown in the illustration.

  25. REMOVE NO. 2 RECLINING LINK COVER RH (for Manual Seat)

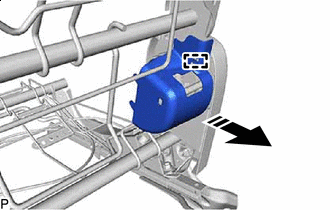

    1. B008009C01
      B007Z37 Remove in this Direction

      Disengage the guide to remove the No. 2 reclining link cover RH as shown in the illustration.

  26. REMOVE REAR SEATBACK PROTECTOR (for Power Seat)


    1. B007ZTCC01

      Remove the 2 nuts and rear seatback protector.

  27. REMOVE FOLD SEAT CONTROL ECU (for Power Seat)

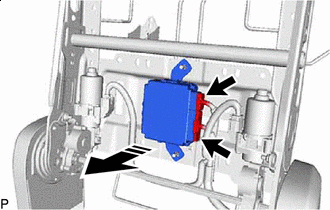

    1. B007XHPC01
      B007Z37 Remove in this Direction

      Disconnect the 2 connectors and remove the fold seat control ECU as shown in the illustration.

  28. REMOVE REAR SEAT WIRE LH (for Power Seat)


    1. A01VX7U

      Disconnect the 2 connectors.

    2. Disengage the 2 clamps and remove the rear seat wire LH.

  29. REMOVE REAR SEATBACK MOULDING LH

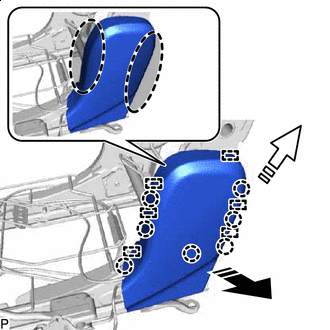

    1. B007XZRC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 7 claws and 6 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seatback moulding LH.

  30. REMOVE REAR SEAT INNER RECLINING COVER LH

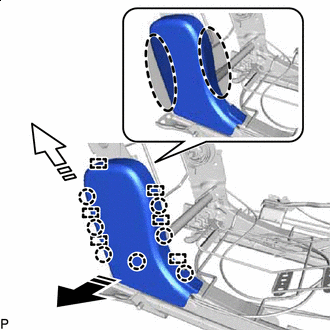

    1. B007XYKC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 7 claws and 6 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seat inner reclining cover LH.

  31. REMOVE RECLINING ADJUSTER INSIDE COVER LH


    1. A01VVSD

      Disengage the claw and guide to remove the reclining adjuster inside cover LH.

  32. REMOVE RECLINING ADJUSTER INSIDE COVER RH


    1. A01VY2S

      Disengage the 2 claws to remove the reclining adjuster inside cover RH.

  33. REMOVE NO. 2 REAR SEAT RECLINING CONTROL CABLE (for Manual Seat)


    1. A01VXM0

      Disengage the 5 clamps.

    2. Disengage the 6 cable clamps and remove the No. 2 rear seat reclining control cable.

  34. REMOVE REAR SEAT LEG PLATE SUB-ASSEMBLY LH


    1. A01VUGB

      Remove the nut and rear seat leg plate sub-assembly LH.

  35. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH

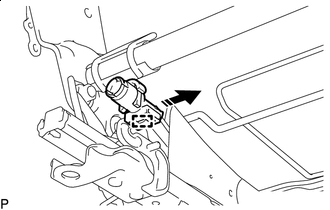

    1. B007ZMBC01
      B007Z37 Remove in this Direction

      Disengage the clamp to remove the joint case as shown in the illustration.

    2. B007XHFC01

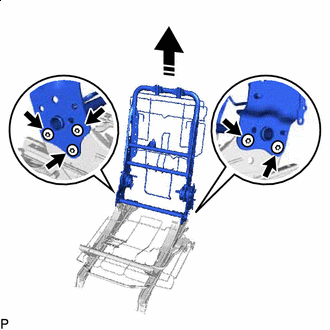

      B007Z37 Remove in this Direction

      Using a T40 "TORX" socket wrench, remove the 5 bolts and rear seatback frame sub-assembly LH from the rear seat cushion frame sub-assembly LH as shown in the illustration.
