CLUTCH STROKE SENSOR(for EC65A) REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  2. REMOVE CLUTCH STROKE SENSOR

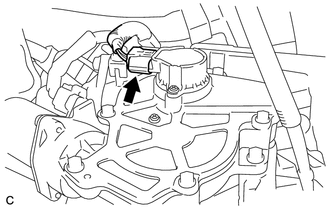

    1. C200985

      Disconnect the connector from the clutch stroke sensor.

      Note:

      Do not forcibly pull the connector as this may damage the wire harness.

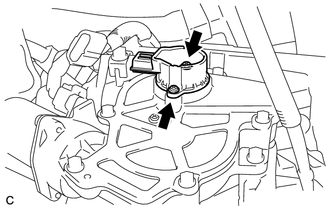

    2. C200986

      Remove the 2 screws and clutch stroke sensor from the clutch actuator housing sub-assembly.

    3. Remove the O-ring from the clutch stroke sensor.
