HEADLIGHT ASSEMBLY REPAIR

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

  • If the installation area of the headlight assembly is damaged, use a supply retainer for a low-cost repair.

  • Ensure that the headlight assembly is not damaged.

PROCEDURE

  1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

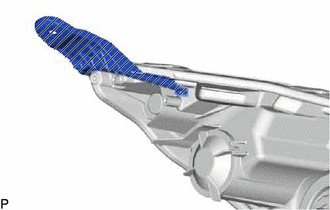

    1. E392065

      Cut off the part shaded in the illustration and sand smooth with sandpaper.

      Note:

      After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

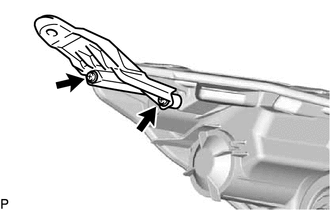

    2. E392066

      Install the upper headlight protector retainer with the 2 screws.

  2. INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER

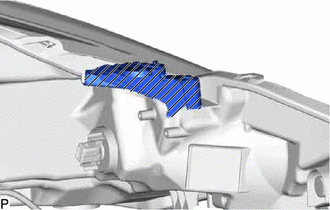

    1. E392067

      Cut off the part shaded in the illustration and sand smooth with sandpaper.

      Note:

      After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

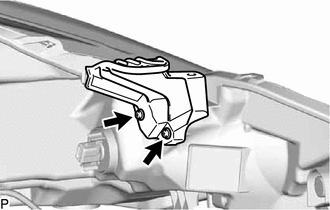

    2. E392068

      Install the upper No. 2 headlight protector retainer with the 2 screws.

  3. INSTALL LOWER HEADLIGHT PROTECTOR RETAINER

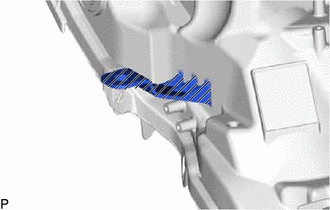

    1. E392069

      Cut off the part shaded in the illustration and sand smooth with sandpaper.

      Note:

      After cutting off the part, place the lower headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

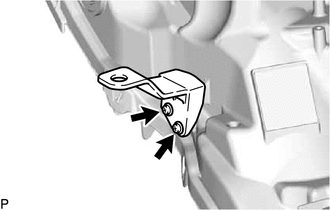

    2. E392070

      Install the lower headlight protector retainer with the 2 screws.
