FRONT AXLE HUB COMPONENTS

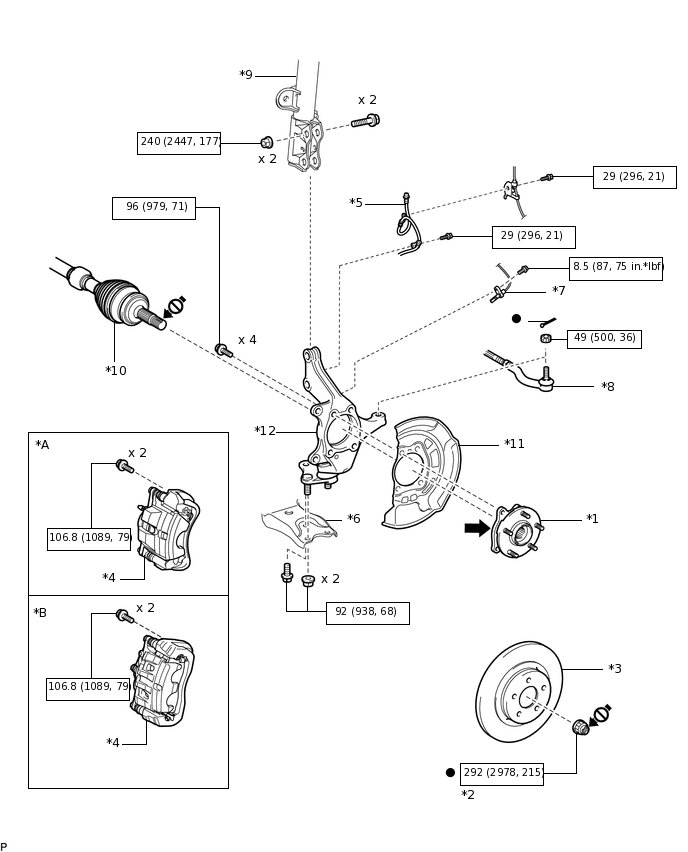

ILLUSTRATION
*A |
for 16 inch Front Disc Brake |
*B |
for 17 inch Front Disc Brake |
*1 |
FRONT AXLE HUB SUB-ASSEMBLY LH |
*2 |
FRONT AXLE SHAFT NUT LH |
*3 |
FRONT DISC |
*4 |
FRONT DISC BRAKE CALIPER ASSEMBLY LH |
*5 |
FRONT FLEXIBLE HOSE |
*6 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*7 |
FRONT SPEED SENSOR LH |
*8 |
TIE ROD END SUB-ASSEMBLY LH |
*9 |
FRONT SHOCK ABSORBER ASSEMBLY WITH COIL SPRING |
*10 |
FRONT DRIVE SHAFT ASSEMBLY LH |
*11 |
FRONT BRAKE DUST COVER |
*12 |
STEERING KNUCKLE LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
 |
Do not apply lubricants to the threaded parts |
