PANORAMIC VIEW MONITOR SYSTEM DIAGNOSIS SYSTEM

  1. PARKING ASSIST MONITOR DIAGNOSIS SYSTEM

    1. For panoramic view monitor system diagnosis, signals received by the parking assist ECU can be checked, and the panoramic view monitor system can be calibrated, adjusted and checked using the radio and display receiver assembly.

      Note:

      Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

      Click here

      Tip:

      The displayed screens and items may differ depending on vehicle specifications.

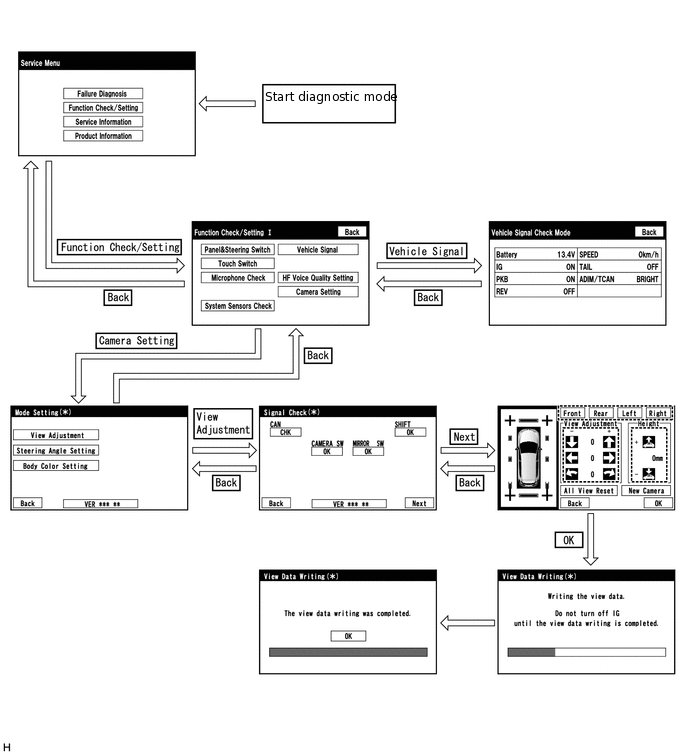

  2. DIAGNOSIS SCREEN TRANSITION (VIEW ADJUSTMENT)

    E340701E01

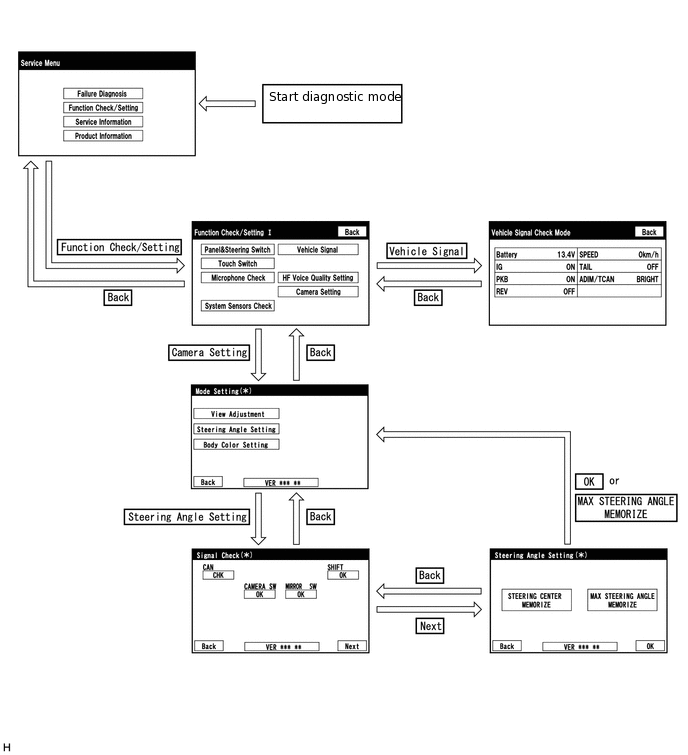

  3. DIAGNOSIS SCREEN TRANSITION (STEERING ANGLE SETTING)

    E340702E01

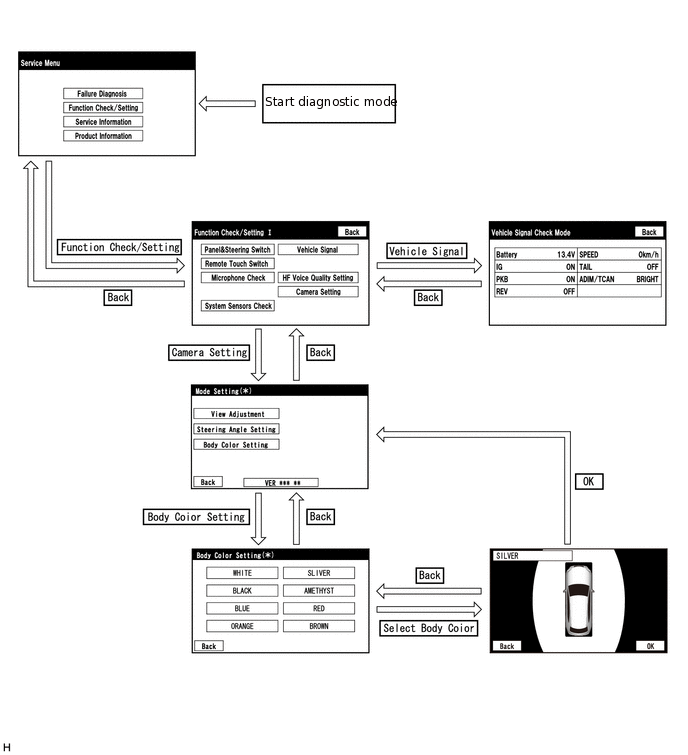

  4. DIAGNOSIS SCREEN TRANSITION (BODY COLOR SETTING)

    E335972E01

  5. DIAGNOSTIC MODE

    1. Diagnostic mode

    2. Failure diagnosis

    3. System check (check using system check mode screen)

    4. Finish diagnostic mode.

  6. SIGNAL CHECK (parking assist ECU input signal)

    1. Start diagnostic mode.

      1. E271944

        Select "Function Check/Setting" on the "Service Menu" screen to display the "Function Check/Setting I" screen.

      2. E314875

        Select "Camera Setting" on the "Function Check/Setting I" screen.

        Tip:

        After "Camera Setting" is selected, the screen transitions differ depending on whether initialization of the parking assist ECU was performed after parking assist ECU replacement.

        Parking Assist ECU Initialization

        Screen Transition

        Not performed

        "Signal Check" screen

        Performed

        "Mode Setting" screen
      3. E296733

        When the screen changes to the "Mode Setting" screen, select "View Adjustment" to display the "Signal Check" screen.

        Tip:

        To select a grayed out item, select and hold the item for 2 seconds or more.

    2. Signal check

      1. E340700

        On the "Signal Check" screen, it is possible to inspect the state of signals sent to the parking assist ECU and check the settings.

        Item

        Inspection Detail

        Note

        CAN

        Speed signal input

        When "CHK" (red) is displayed, selecting "Next" will not change to the next screen.

        CAMERA SW

        Telltale light assembly (panoramic view monitor main switch) signal input

        SHIFT

        Shift information input
        Tip:

        • When "CHK" (red) is displayed, perform inspections based on the result of the following inspections.

        • If performing the adjustment after proceeding to the next screen, confirm that all items display "OK" (blue) before selecting "Next".

    3. CAN inspection

      Tip:

      If "CHK" (red) is displayed for "CAN", check for DTCs and perform troubleshooting based on the output DTCs.

      Click hereClick here

    4. CAMERA SW inspection

      1. Check that "OK" (blue) is displayed for "CAMERA SW" and select "OK".

        Tip:

        If "CHK" (red) remains displayed or the "CAMERA SW" inspection result is not normal, perform troubleshooting according to the Problem Symptoms Table ("CHK" message(s) are displayed on the "Signal Check" screen).

        Click hereClick here

    5. SHIFT inspection

      1. Check that "OK" (blue) is displayed for "SHIFT" and select "OK".

        Tip:

        If "CHK" (red) remains displayed or the "SHIFT" inspection result is not normal, perform troubleshooting according to the Problem Symptoms Table ("CHK" message(s) are displayed on the "Signal Check" screen)

        Click hereClick here

    6. Finish diagnostic mode.

  7. Body Color Setting

    Tip:

    • This function is used for only customers who request it

    • The color of the vehicle icon displayed on the moving view screen or the panoramic view screen can be changed from the diagnosis screen.

    1. Start diagnostic mode.

      1. E271944

        Select "Function Check/Setting" on the "Service Menu" screen.

      2. E314875

        Select "Camera Setting" on the "Function Check/Setting I" screen.

      3. E296733

        Select "Body Color Setting" on the "Mode Setting" screen to display the "Body Color Setting" screen.

    2. Body color setting

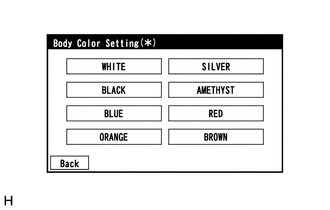

      1. E335951

        Select the color to change, and display the result confirm screen.

        Tip:

        "White" is initialized.

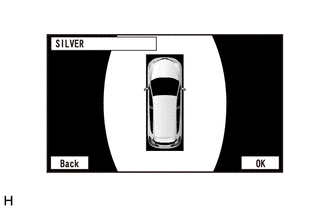

      2. E335952

        Select "OK" on the result confirm screen, and display the mode setting screen.

        Note:

        Changing the color of the icon may make the icon border hard to see on the moving view screen or panoramic view screen.

        Tip:

        • The body color setting screen does not display the actual body color.

        • To change the body color setting again, select "Back" and select it again.

        • The setting is memorized when the mode setting screen is displayed.

    3. Finish diagnostic mode.

  8. CALIBRATION WHEN SERVICING VEHICLE

    Note:

    Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

    Click here
