CRUISE CONTROL MAIN SWITCH INSTALLATION

PROCEDURE

1. INSTALL CRUISE CONTROL MAIN SWITCH

   1. Connect the connector to install the cruise control switch wire to the cruise control main switch.

   2.

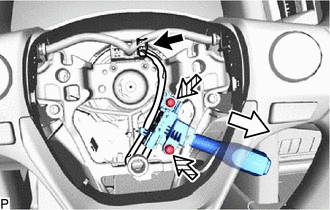

      Install the cruise control main switch as shown in the illustration.

   3. Install the 2 screws.

   4. Connect the connector.

2. INSTALL STEERING PAD ASSEMBLY

   Click here

3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

4. INSTALL BATTERY SERVICE COVER

   Click here

5. INSTALL DECK BOARD ASSEMBLY

   Click here
