REAR SEAT ASSEMBLY(for 60/40 Split Seat Type LH Side) INSPECTION

PROCEDURE


  1. PRECAUTION

    Note

    After performing the following check, initialize the fold seat control ECU (initial position reset and initial position memorization).

    Click here

  2. INSPECT REAR SEATBACK FRAME SUB-ASSEMBLY LH


    1. Check the operation of the reclining motor.


      1. Apply battery voltage to the reclining motor connector, and check that the rear seatback frame sub-assembly LH operates smoothly as follows.

        Note


        • Connect the battery simultaneously to fold motor and reclining motor to perform an inspection.

        • Do not apply voltage to terminals 2, 5 and 6 of the connector for fold motor.

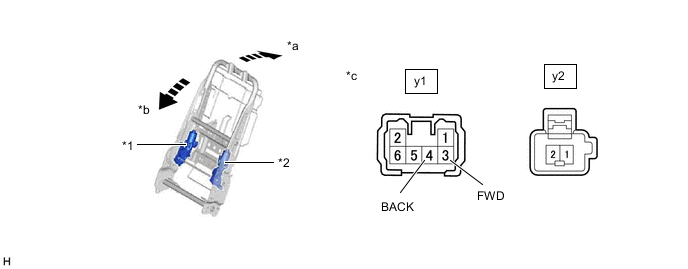

        A01RF0XC02
        *1 Fold Motor *2 Reclining Motor
        *a Forward *b Backward
        *c

        Component without wire harness connected

        (Rear Seatback Frame sub-assembly LH)

        		 - -
        OK
        Condition Specified Condition

        Battery positive (+) → Terminal y1-3 (FWD)

        Battery negative (-) → Terminal y1-4 (BACK)

        		 Forward

        Battery positive (+) → Terminal y2-1

        Battery negative (-) → Terminal y2-2

        Battery positive (+) → Terminal y1-4 (BACK)

        Battery negative (-) → Terminal y1-3 (FWD)

        		 Backward

        Battery positive (+) → Terminal y2-2

        Battery negative (-) → Terminal y2-1

        If the result is not as specified, replace the rear seatback frame sub-assembly LH.
