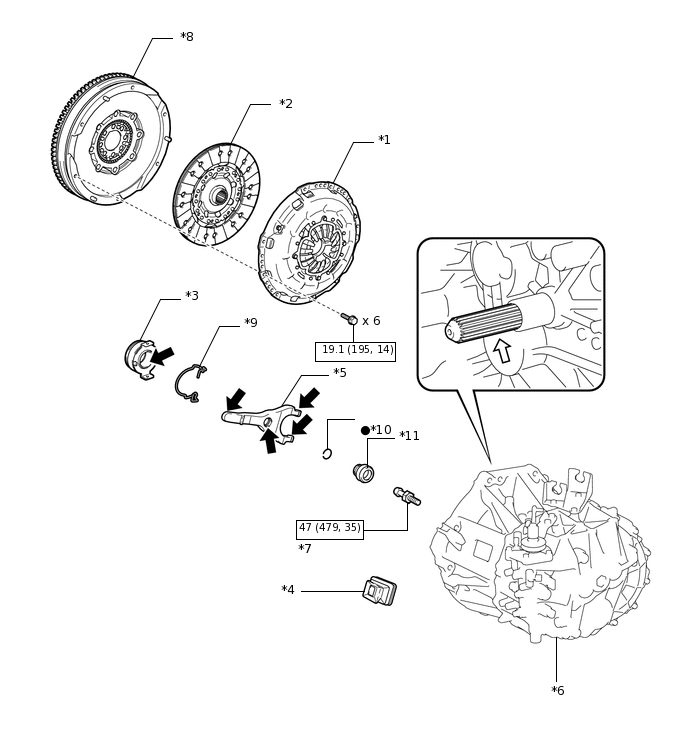

CLUTCH UNIT(for EA66) COMPONENTS
ILLUSTRATION
*1 |
CLUTCH COVER ASSEMBLY |
*2 |
CLUTCH DISC ASSEMBLY |
*3 |
CLUTCH RELEASE BEARING ASSEMBLY |
*4 |
CLUTCH RELEASE FORK BOOT |
*5 |
CLUTCH RELEASE FORK SUB-ASSEMBLY |
*6 |
MANUAL TRANSAXLE ASSEMBLY |
*7 |
RELEASE FORK SUPPORT |
*8 |
FLYWHEEL SUB-ASSEMBLY |
*9 |
RELEASE BEARING HUB CLIP |
*10 |
SNAP RING |
*11 |
CLUTCH RELEASE FORK SUPPORT BOOT |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Clutch spline grease |
 |
Release hub grease |
