AIRBAG SYSTEM

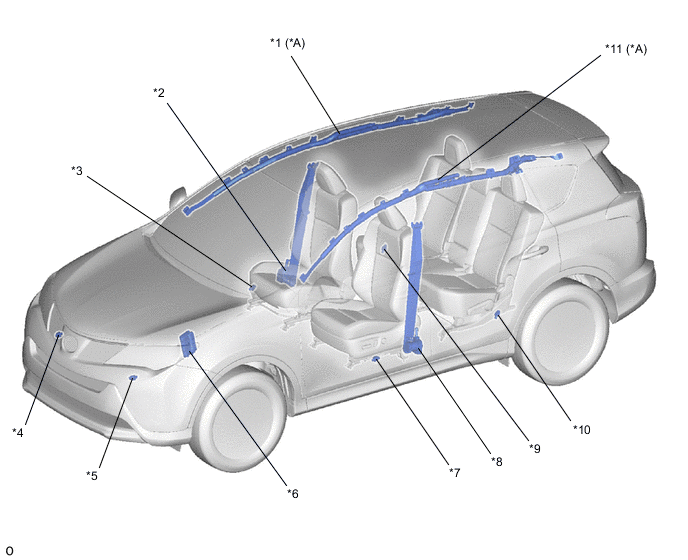

A00YYLIC01
*A Models with SRS Curtain Shield Airbag - -
*1 Curtain Shield Airbag Assembly RH *2 Front Seat Outer Belt Assembly RH
*3 Side Airbag Sensor Assembly RH *4 Front Airbag Sensor RH
*5 Front Airbag Sensor LH *6 ECM
*7 Side Airbag Sensor Assembly LH *8 Front Seat Outer Belt Assembly LH
*9 No. 2 Side Airbag Sensor Assembly RH *10 No. 2 Side Airbag Sensor Assembly LH
*11 Curtain Shield Airbag Assembly LH - -

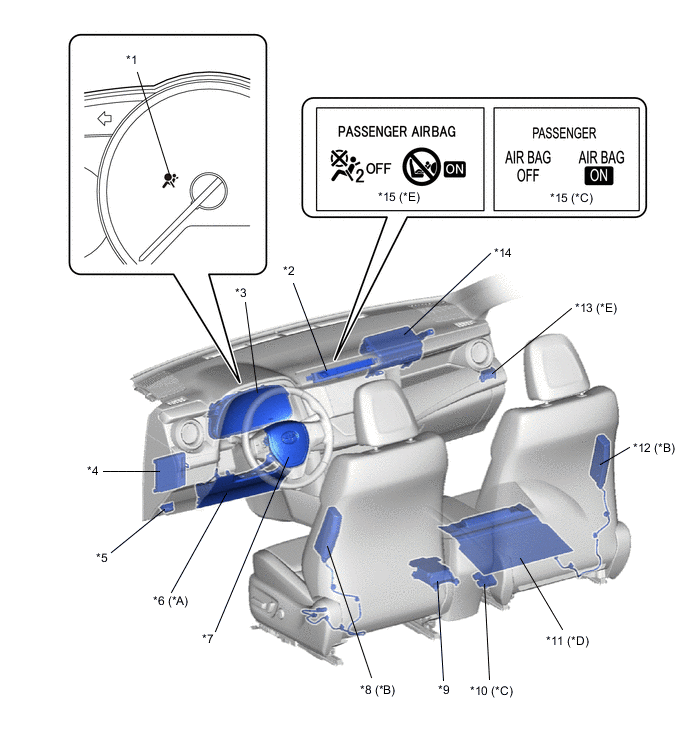

A00YYOQC01
*A Models with SRS Driver Knee Airbag *B Models with SRS Front Side Airbag
*C Models for Korea *D Models with SRS seat cushion airbag
*E Models with Airbag Cut Off Switch Cylinder Sub-assembly - -
*1 SRS Warning Light *2 Telltale Light Assembly
*3 Combination Meter Assembly *4 Main Body ECU (Multiplex Network Body ECU)
*5 DLC3 *6 Lower No. 1 Instrument Panel Airbag Assembly
*7 Horn Button Assembly *8 Front Seat Airbag Assembly LH
*9 Center Airbag Sensor Assembly (Airbag ECU Assembly) *10 Occupant Detection ECU
*11 Front Seat Cushion Airbag Assembly *12 Front Seat Airbag Assembly RH
*13 Airbag Cut Off Switch Cylinder Sub-assembly *14 Instrument Panel Passenger without Door Airbag Assembly
*15 AIRBAG ON/OFF Indicator Lights - -
