REAR AXLE CARRIER COMPONENTS

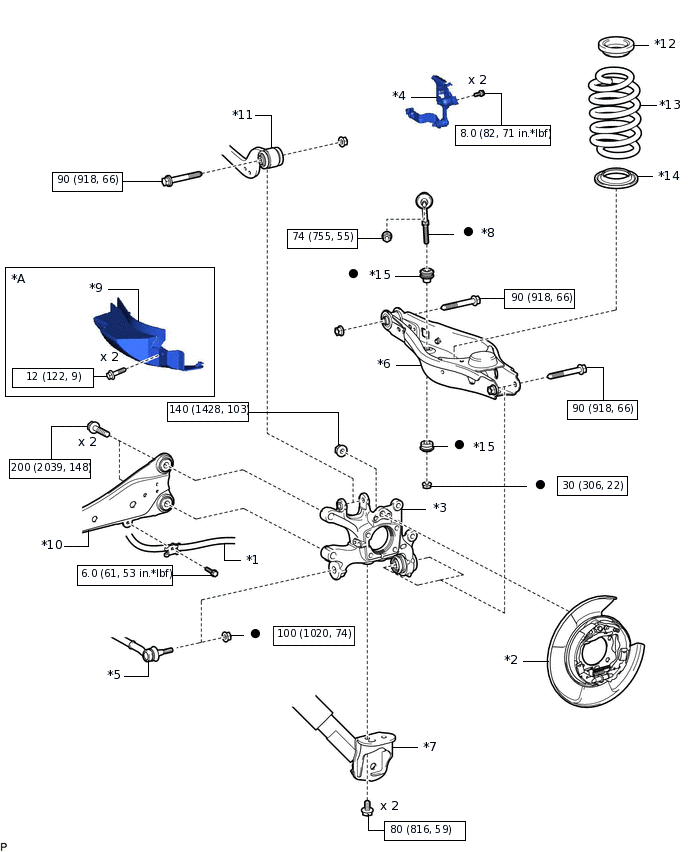

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
NO. 3 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE ASSEMBLY |
*3 |
REAR AXLE CARRIER SUB-ASSEMBLY LH |
*4 |
REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
*5 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
*6 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*7 |
REAR SHOCK ABSORBER BRACKET LH |
*8 |
REAR STABILIZER LINK ASSEMBLY LH |
*9 |
REAR SUSPENSION ARM COVER LH |
*10 |
REAR TRAILING ARM ASSEMBLY |
*11 |
REAR UPPER CONTROL ARM ASSEMBLY LH |
*12 |
REAR UPPER COIL SPRING INSULATOR LH |
*13 |
REAR COIL SPRING LH |
*14 |
REAR LOWER COIL SPRING INSULATOR LH |
*15 |
REAR STABILIZER CUSHION |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
