INTAKE MANIFOLD COMPONENTS

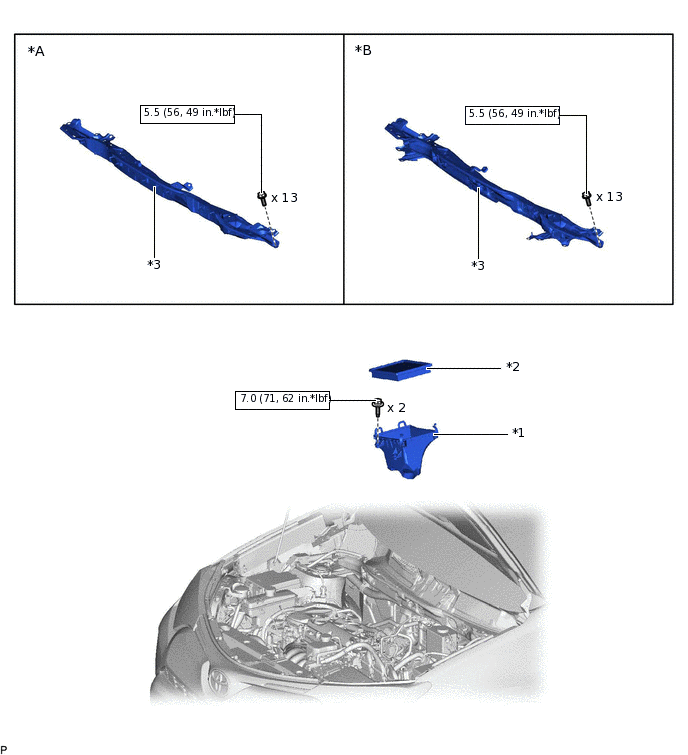

ILLUSTRATION
*A |
for LHD |
*B |
for RHD |
*1 |
AIR CLEANER CASE SUB-ASSEMBLY |
*2 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*3 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

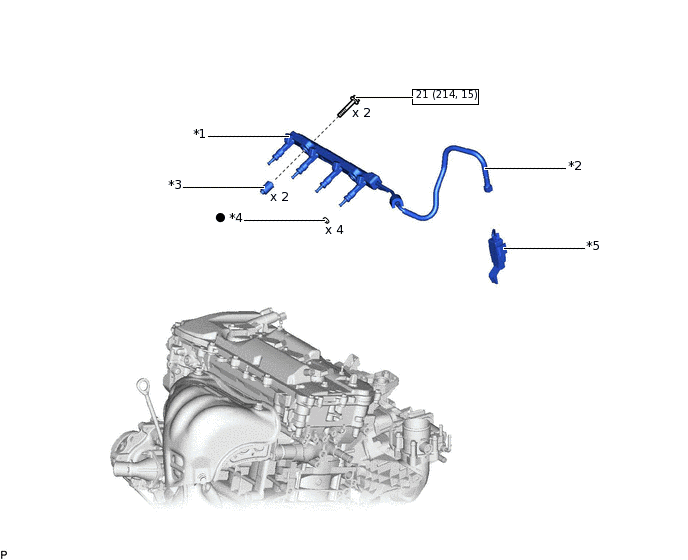

ILLUSTRATION
*1 |
FUEL DELIVERY PIPE |
*2 |
FUEL TUBE SUB-ASSEMBLY |
*3 |
NO. 1 FUEL DELIVERY PIPE SPACER |
*4 |
INJECTOR VIBRATION INSULATOR |
*5 |
FUEL HOSE CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

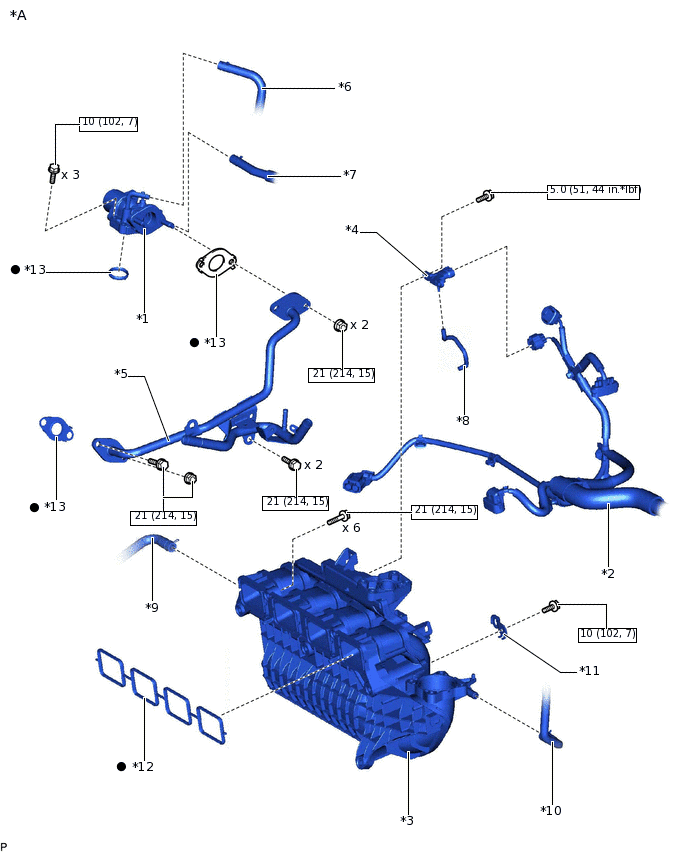

ILLUSTRATION
*A |
w/ EGR System |
- |
- |
*1 |
EGR VALVE ASSEMBLY |
*2 |
ENGINE WIRE |
*3 |
INTAKE MANIFOLD |
*4 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
*5 |
NO. 1 EGR PIPE |
*6 |
NO. 1 WATER BY-PASS HOSE |
*7 |
NO. 2 WATER BY-PASS HOSE |
*8 |
VACUUM HOSE |
*9 |
NO. 2 PCV HOSE |
*10 |
PURGE LINE HOSE |
*11 |
WIRING HARNESS CLAMP BRACKET |
*12 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
*13 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

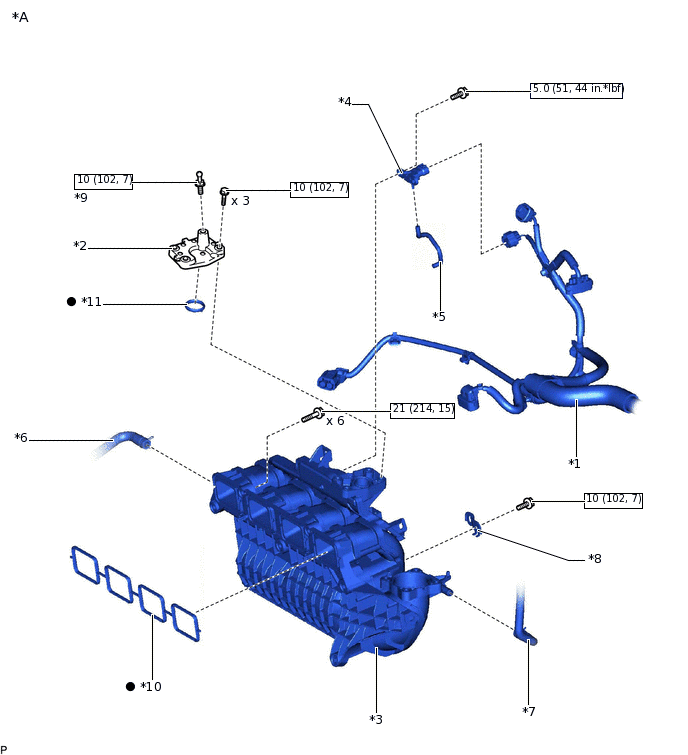

ILLUSTRATION
*A |
w/o EGR System |
- |
- |
*1 |
ENGINE WIRE |
*2 |
INTAKE FLANGE |
*3 |
INTAKE MANIFOLD |
*4 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
*5 |
VACUUM HOSE |
*6 |
NO. 2 PCV HOSE |
*7 |
PURGE LINE HOSE |
*8 |
WIRING HARNESS CLAMP BRACKET |
*9 |
ENGINE COVER JOINT |
*10 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
*11 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
