REAR SEATBACK HEATER(for RH Side) INSPECTION

PROCEDURE

  1. INSPECT SEAT HEATER ASSEMBLY (for RH Side)

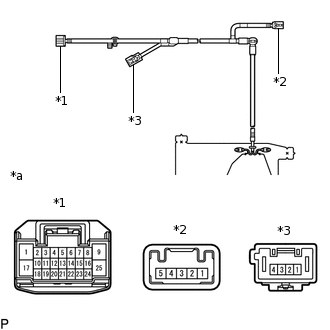

    B433021C01

    *1

    Connector A

    *2

    Connector B

    *3

    Connector C

    *a

    Component without harness connected

    (Rear Seatback Heater Assembly)

    1. Check the rear seatback heater assembly.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        A-2 - B-2

        Seatback heater temperature 20°C (68°F)

        Below 1 Ω

        A-5 - B-1

        A-15 - B-3

        A-22 - B-4

        A-17 - C-1

        A-25 - C-2

        C-3 - C-4

        3.28 to 3.92 Ω

        If the result is not as specified, replace the rear seatback heater assembly.
