REAR SPEED SENSOR(for 2WD) INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedures listed below are for the LH side.

PROCEDURE

  1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)

    Click here

  2. INSTALL REAR DISC

    Click here

  3. INSTALL REAR DISC BRAKE CYLINDER MOUNTING LH

    Click here

  4. INSTALL SKID CONTROL SENSOR WIRE

    Note:

    To prevent interference with other parts, do not twist the painted line areas of the skid control sensor wire when installing it.

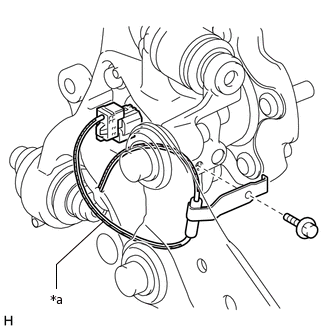

    1. C359136C01

      *a

      Painted Line

      Connect the skid control sensor wire connector to the skid control sensor.

    2. Install the sensor clamp with the bolt.

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

      Note:

      Do not twist the skid control sensor wire when installing the clamp.

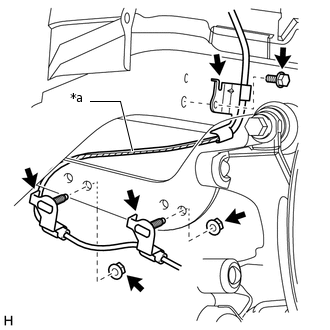

    3. C297836C01

      *a

      Painted Line

      Install the 2 sensor clamps with the 2 nuts.

      5.0 N*m

      51 kgf*cm

      44 in.*lbf

      Note:

      Do not twist the skid control sensor wire when installing the clamps.

    4. Install the sensor clamp with the bolt.

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

      Note:

      Do not twist the skid control sensor wire when installing the clamp.

    5. C279263C01

      *1

      Grommet

      *2

      Skid Control Sensor Wire Connector

      *3

      Band Clamp

      *a

      Inside of Vehicle

      Insert the skid control sensor wire connector and grommet into the inside of the vehicle through the passage hole in the wheel house.

      Note:

      Make sure the grommet band clamp remains on the outside of the vehicle.

    6. Hold the grommet and pull it toward the outside of the vehicle. Then fix the grommet in place so that it is not tilted.

      C274704C01

      *a

      Outside of Vehicle

      *b

      30°
      Note:

      • When pulling out the grommet, do not grip the skid control sensor wire.

      • Fix the grommet in place within the range shown in the illustration.

    7. Connect the skid control sensor wire connector.

  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    1. Install the deck trim side panel assembly LH.

      Click here

      Tip:

      Refer to the procedures from the installation of the deck trim side panel assembly LH up until the installation of the rear door scuff plate LH.

  6. INSTALL REAR WHEEL

    Click here

  7. CHECK SPEED SENSOR SIGNAL

    Click here
