CLUTCH ACTUATOR(for EC65A) COMPONENTS

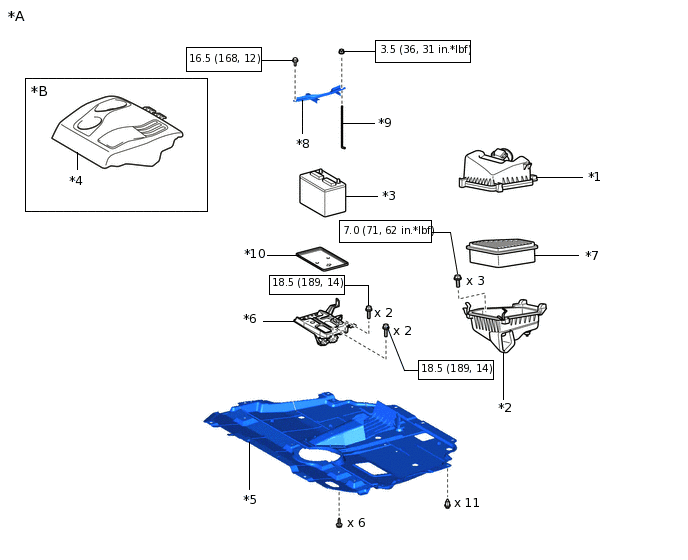

ILLUSTRATION
*A |
for Hatchback |
*B |
w/ No. 1 Engine Cover |
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
BATTERY |
*4 |
NO. 1 ENGINE COVER |
*5 |
NO. 1 ENGINE UNDER COVER |
*6 |
NO. 2 BATTERY CARRIER |
*7 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*8 |
BATTERY CLAMP |
*9 |
BATTERY CLAMP BOLT |
*10 |
BATTERY TRAY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

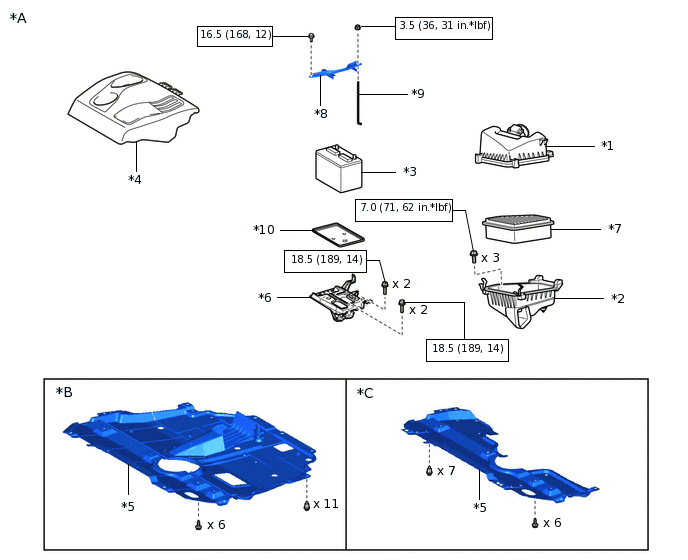

ILLUSTRATION
*A |
for Sedan |
*B |
for Full Cover Type |
*C |
for Half Cover Type |
- |
- |
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
BATTERY |
*4 |
NO. 1 ENGINE COVER |
*5 |
NO. 1 ENGINE UNDER COVER |
*6 |
NO. 2 BATTERY CARRIER |
*7 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*8 |
BATTERY CLAMP |
*9 |
BATTERY CLAMP BOLT |
*10 |
BATTERY TRAY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
CLUTCH ACTUATOR ASSEMBLY |
*2 |
BLEEDER CLUTCH RELEASE TUBE |
*3 |
WIRE HARNESS |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
CLUTCH MASTER CYLINDER RESERVOIR SUB-ASSEMBLY |
*2 |
CLUTCH STROKE SENSOR |
*3 |
CLUTCH MASTER CYLINDER RESERVOIR FILLER CAP |
*4 |
CLIP |
*5 |
CLUTCH RESERVOIR TUBE |
*6 |
NO. 2 CLUTCH RESERVOIR TUBE |
*7 |
O-RING |
*8 |
CLUTCH ACTUATOR HOUSING SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
 |
Brake Fluid |
